Aluminum Laser Welder: Manufacturing Quality

Klear Laser subjects all aluminum fiber laser welders to rigorous thermal aging tests. Units undergo 500+ hour continuous operation cycles at 95% max power while monitoring critical components. This validates long-term stability of JPT or Raycus pump diodes and cooling systems under industrial loads. Accelerated aging identifies potential failure points before customer deployment.

Beam quality analysis occurs at multiple production stages using calibrated CCD profilers. We measure M² values, power stability (±1.5% typical), and focal spot consistency across the work envelope. This ensures optimal energy delivery for aluminum’s high thermal conductivity and reflectivity challenges. Precise beam parameters directly enable deep, spatter-free welds in 1mm-6mm materials.

Our QC protocol includes pre-shipment weld validation on actual customer-simulated aluminum joints. Trained engineers inspect penetration depth, bead geometry, and HAZ width using cross-sectioning and metallurgical analysis. Every system receives certification documents detailing beam specs, aging test results, and weld sample photos. Final verification confirms wobble head synchronization with pulse parameters.

The following table compares traditional methods against Klear Laser’s aluminum-specific welding solution:

Hauptmerkmale und Vorteile

Klear Laser aluminum welders dominate industrial applications through precision-engineered component integration. Our systems specifically address aluminum’s high reflectivity and thermal conductivity challenges that cripple conventional equipment. The combination of premium fiber laser sources and advanced wobble welding heads delivers penetration depths up to 5mm on 6xxx series aluminum while virtually eliminating hot cracking defects.

We specify JPT or Raycus fiber laser sources based on your production requirements. Both feature optimized 1080nm wavelength output with real-time back-reflection monitoring systems that protect against aluminum’s reflectivity. The JPT MOPA architecture provides exceptional beam quality (M² < 1.3) and pulse stability critical for thin-gauge aluminum, while Raycus continuous wave sources deliver 2000W to 6000W power ranges with ±1% stability for deep penetration on structural components.

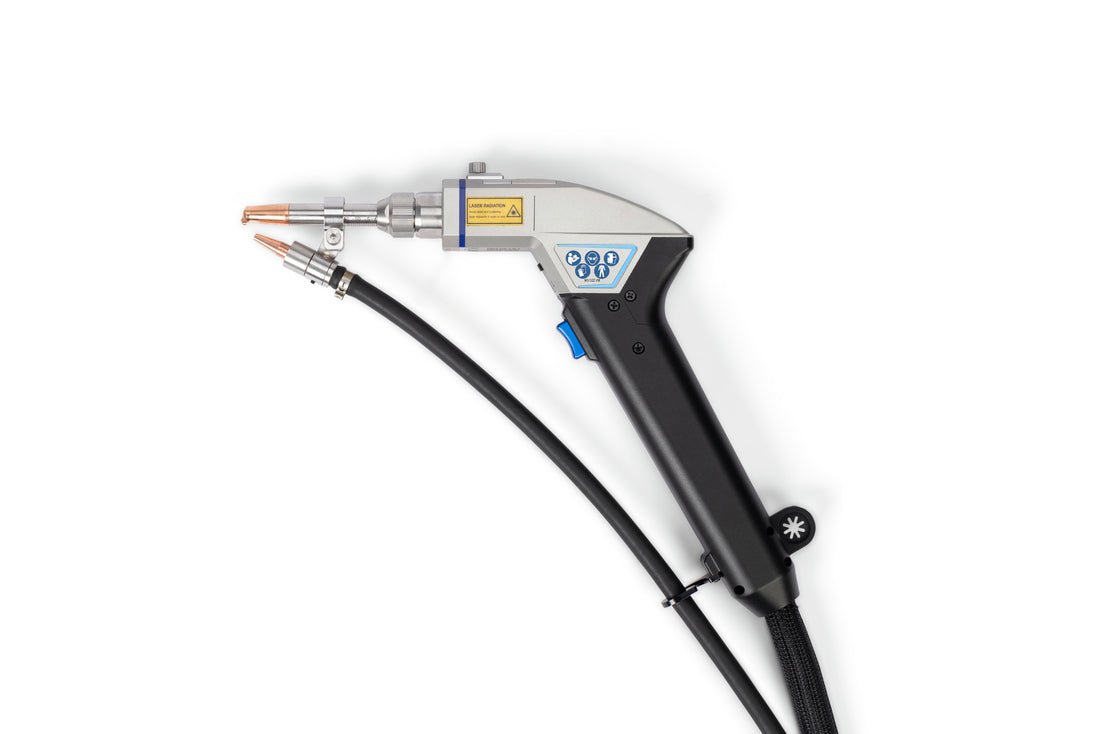

The Klear Laser wobble welding head represents our core technical advantage. This system oscillates the focused beam in programmable patterns up to 600Hz across 0-4mm amplitude ranges. This dynamic beam manipulation instantly remelts solidifying aluminum to disrupt columnar dendritic structures, preventing solidification cracking. The head features automatic focal tracking within ±0.1mm accuracy and interchangeable collimators to optimize spot size from 50μm to 200μm.

Our proprietary control architecture synchronizes source power ramping with head oscillation parameters in real-time. This prevents pore formation during keyhole collapse and maintains consistent weld bead geometry across varying thermal conditions. The system includes integrated process monitoring with photodiode feedback loops that adjust parameters dynamically when welding different aluminum alloys.

Industrial users report 40% faster cycle times compared to TIG welding on 3mm aluminum chassis components. The wobble technology eliminates post-weld grinding on cosmetic surfaces and reduces filler wire consumption by 60% through superior gap bridging capability. Klear Laser systems operate continuously in 24/7 production environments with water-cooled thermal management.

Industrielle Anwendungen

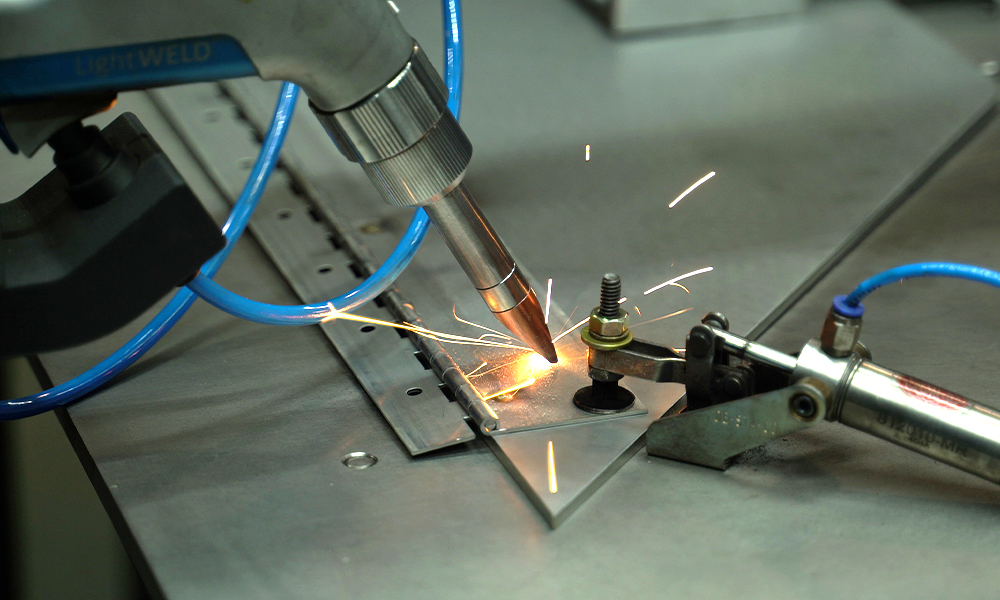

Aluminum laser welders excel in automotive manufacturing, particularly for electric vehicle battery enclosures and structural components requiring high-strength, lightweight joints. The deep penetration capability ensures robust welds on thick sections, while the non-contact process prevents contamination of sensitive aluminum alloys.

In aerospace, these systems join fuselage panels, wing components, and fuel tanks, where precision and reliability are critical. JPT or Raycus laser sources provide stable, high-brightness outputs for consistent weld quality on thin-walled aeronautical aluminum.

Marine applications include hull assembly, deck joining, and corrosion-resistant component fabrication. Wobble welding heads adapt to curved or irregular seams, maintaining joint integrity in saltwater environments.

Warum Klear Laser wählen

Klear Laser provides comprehensive technical support to ensure seamless integration and operation of our laser systems. Our team of engineers offers remote diagnostics, real-time assistance, and on-site service when needed, minimizing downtime and maximizing productivity for industrial clients.

We back every machine with a standard 2-year warranty covering the entire system, including the laser source and critical components. This industry-leading warranty reflects our confidence in the durability and reliability of our Fiber Laser Welding and Pulsed Laser Cleaning machines built with JPT or Raycus laser sources.

Spare parts are readily available through our global logistics network, ensuring fast replacement and minimal production interruption. Below is a comparison of our support offerings versus industry averages:

This commitment to service, combined with robust engineering, ensures long-term operational efficiency and customer trust.
