Battery Laser: Shipping & Compliance

Proper crating is essential for Klear Laser industrial systems during global shipment. We utilize custom-engineered wooden crates with anti-static foam and humidity control for sensitive optics. This meets ISTA 3A standards to protect JPT/Raycus laser sources and motion components. Damage prevention ensures on-site installation readiness without costly recalibration.

HS code accuracy prevents customs delays for battery manufacturing equipment. Fiber laser welders fall under HS 8515.21.00 (resistance welding machines), while pulsed cleaners use HS 8456.20.00 (laser processing machines). UV printers ship under HS 8443.59.00. Always verify codes with destination country tariff databases as misclassification risks 20-30% duty errors.

Laser safety compliance is non-negotiable in battery facilities due to flammable electrolytes. All Klear systems incorporate IEC 60825-1 Class 1 interlocks, emergency stops, and fume extraction. Mandatory training covers LSO designation and enclosure validation to prevent ignition risks from stray reflections during busbar welding or terminal cleaning.

The following table compares legacy methods against Klear Laser solutions for battery production applications:

Hauptmerkmale und Vorteile

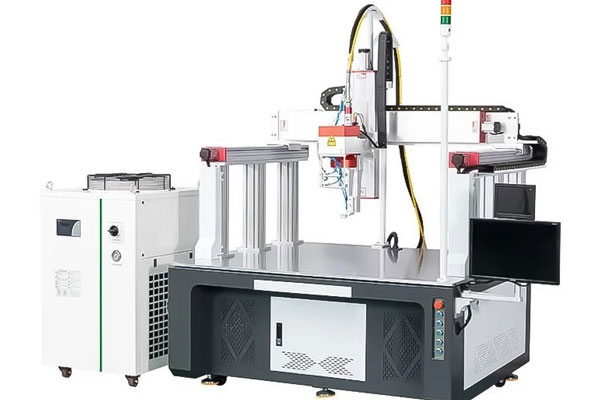

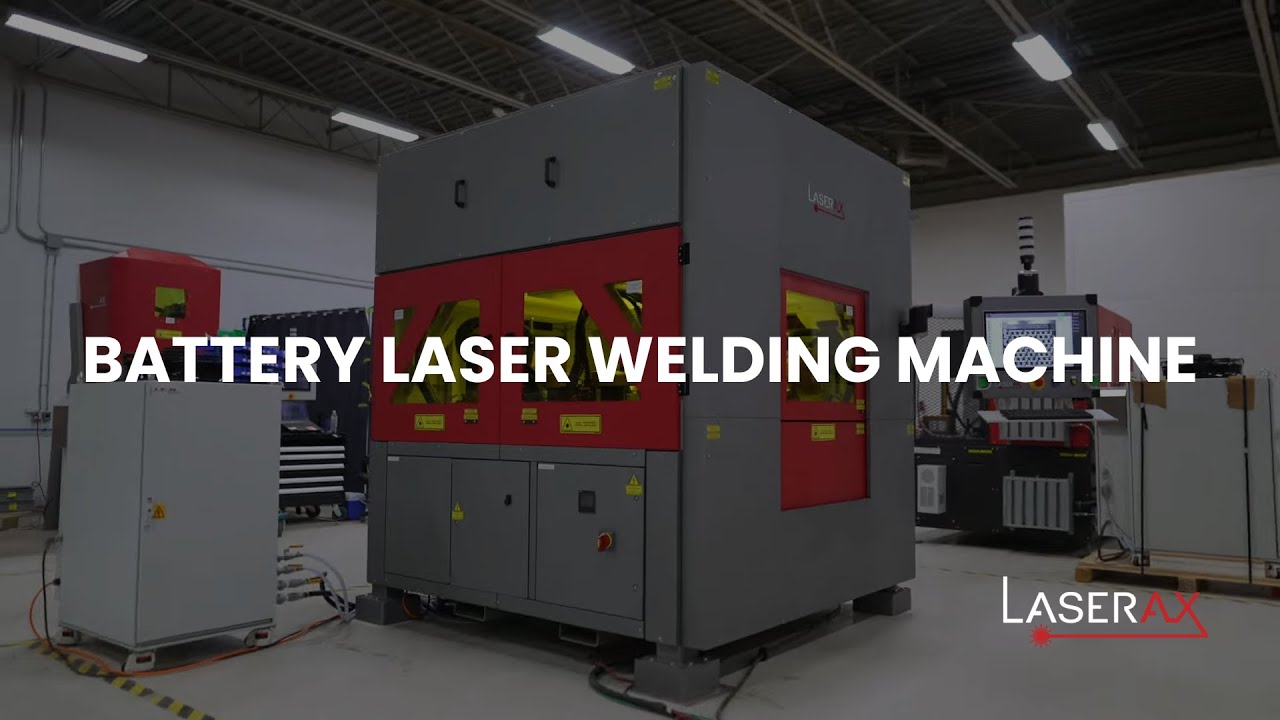

Klear Laser battery laser welders deliver unmatched precision through our engineered source-head integration. We specify JPT M-series sources for battery applications demanding pulse shaping control, while Raycus configurations provide cost-effective power for high-throughput production lines. Both platforms achieve <1% power fluctuation across 24/7 operation, critical for consistent tab penetration in lithium cell manufacturing.

Our proprietary wobble welding heads feature 5mm amplitude adjustment with 2000Hz oscillation frequency. This eliminates hot cracking in aluminum-copper dissimilar joints common in battery tab welding. The optical design maintains ±0.02mm focus stability during high-speed scanning, ensuring every weld meets automotive-grade conductivity requirements.

The Klear Laser Battery Weld Series includes three configurations optimized for different production scales. Each system integrates our adaptive control software that automatically compensates for surface oxidation and coating variations found in electrode materials.

Battery manufacturers require absolute substrate safety during welding operations. Our systems incorporate real-time plasma monitoring that halts processing if electrode coating damage is detected. The 1070nm wavelength provides optimal absorption on copper and aluminum substrates while minimizing heat-affected zones in sensitive separator materials.

Integration with existing production lines is seamless through our robotic-compatible fiber delivery systems. Standard configurations include 10-meter fiber lengths with 100-micron core diameters, enabling flexible mounting on SCARA or delta robots used in pouch cell assembly. The wobble head’s compact 180mm profile fits tight spacing constraints in battery module fixtures.

Industrielle Anwendungen

Klear Laser’s pulsed fiber laser cleaning systems excel in demanding industrial environments requiring precise, substrate-safe surface preparation. These systems effectively remove rust, oxides, coatings, and contaminants without damaging the underlying material. Their portability and adaptability make them ideal for integration into manufacturing lines or use in field operations. Pulse width is optimized to minimize thermal impact, ensuring substrate safety even on sensitive alloys.

Klear Laser’s pulsed laser cleaning technology finds critical applications across multiple high-specification industries. In the automotive sector, it cleans engine components, fuel injectors, and battery parts. Aerospace applications include removing oxidation from turbine blades and preparing composite surfaces. Marine industry uses focus on hull component refurbishment and saltwater corrosion removal.

Our systems ensure compliance with environmental regulations by eliminating chemical sludge and abrasive media waste. The controlled pulse energy delivers consistent cleaning results on diverse metallic surfaces. Substrate safety is maintained even during heavy oxide layer removal.

Warum Klear Laser wählen

Klear Laser provides comprehensive technical support to ensure seamless integration and operation of our industrial laser systems. Our team of engineers offers remote assistance, on-site service, and real-time troubleshooting to minimize downtime and maximize productivity in your production environment.

All Klear Laser machines come with a standard 2-year warranty covering the entire system, including laser sources and control components. This warranty reflects our confidence in the durability and reliability of our equipment, built with industrial-grade components from trusted suppliers like JPT and Raycus.

We maintain a global inventory of spare parts for quick delivery and minimal lead times. Whether it’s protective lenses, nozzles, or control boards, genuine Klear Laser parts ensure long-term performance and compatibility across all our fiber laser welding, cleaning, and UV printing systems.
