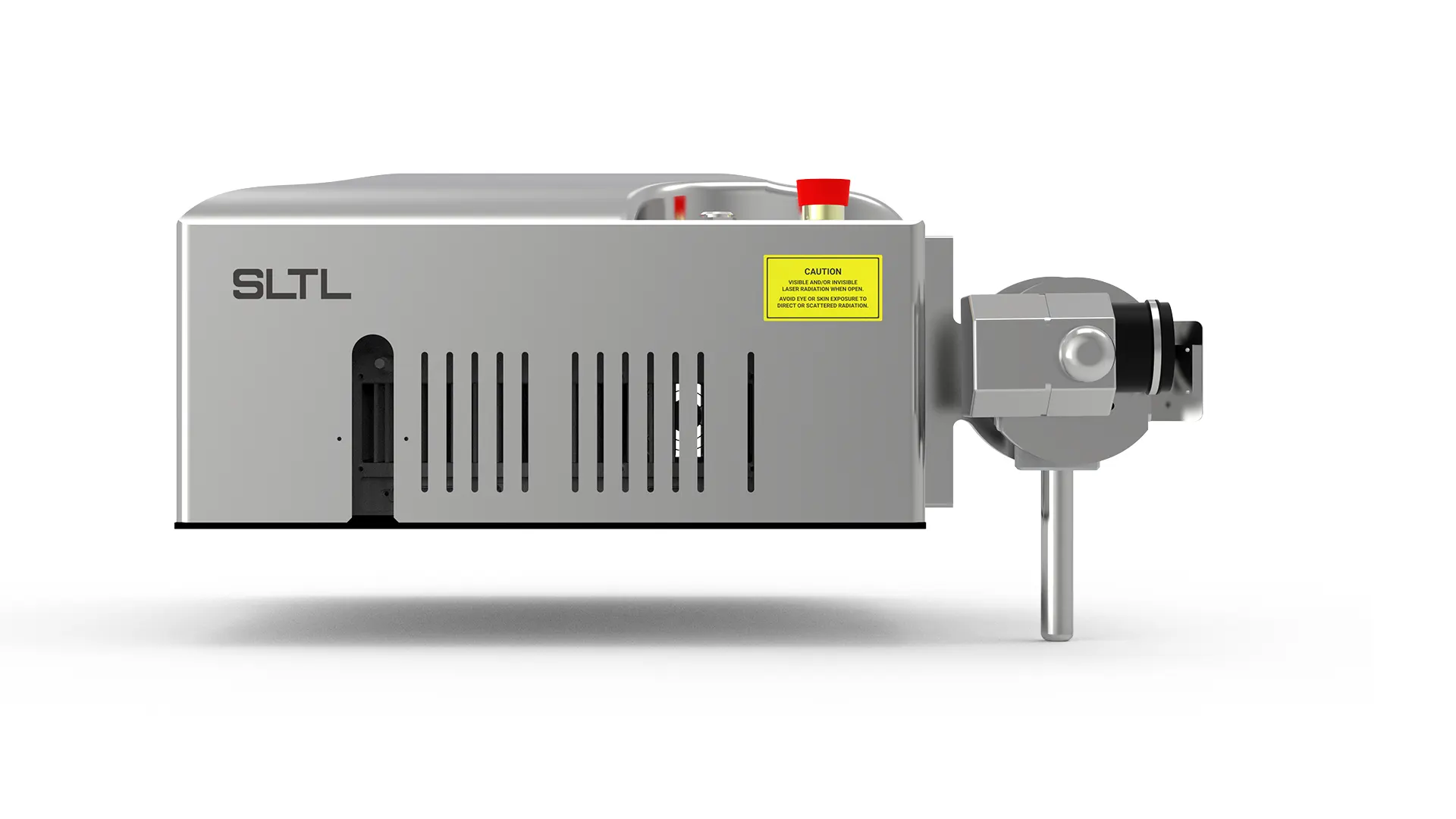

Lasers That Remove Rust: Manufacturing Quality

Aging tests are critical for validating the long-term reliability of laser systems used in rust removal. These tests simulate extended operational cycles to assess component degradation, especially in diodes, cooling systems, and optical fibers. Results inform preventive maintenance schedules and design improvements for industrial environments.

Beam analysis ensures optimal laser performance by measuring focus spot size, divergence, and energy distribution. For pulsed laser cleaning machines, precise beam quality is essential to remove rust without damaging the underlying substrate. We use real-time beam profilers during production to verify stability and consistency.

Our QC protocols include in-line diagnostics, full-system burn-in testing, and traceable calibration of all optical and electronic components. Each unit undergoes environmental stress screening, including thermal cycling and vibration testing. Only units passing 100% functional verification are released for shipment.

The table below compares traditional rust removal methods with modern laser cleaning systems. Laser technology eliminates consumables, reduces waste, and avoids substrate damage through controlled pulse width and peak power modulation.

Hauptmerkmale und Vorteile

Klear Laser’s rust removal systems utilize premium Raycus pulsed fiber laser sources. These sources deliver ultra-short 80-120 ns pulses for precise rust ablation. The controlled pulse duration prevents heat buildup in the base material. This ensures substrate integrity during cleaning operations.

Our proprietary scanning heads integrate real-time thermal sensors and adaptive focus technology. This system dynamically adjusts laser parameters to avoid overheating delicate substrates. High-speed galvo mirrors enable rapid movement across complex surfaces. Consistent beam quality delivers uniform results on irregular geometries.

Industrielle Anwendungen

Pulsed-laser rust removal has moved from the R&D lab to the production line because it strips corrosion without grinding media, acids, or blast grit. In auto plants the same 200 ns MOPA beam that cleans weld seams on galvanized BIW panels also refurbishes aluminum stamping dies overnight, cutting downtime by 70 %. Aerospace MRO depots use 100 W air-cooled units to remove chromate primer from turbine blades; the 30 µm pulse depth leaves the diffusion coating intact so the part can go straight back into service. On cruise-ship decks and naval frigates, 500 W backpack cleaners evaporate orange flash-rust from salt-spray zones, allowing fresh epoxy to be applied the same shift with no containment tent.

The rule of thumb is simple: if the substrate melts above 1200 °C and the oxide below 300 °C, the contaminant flashes off while the parent metal stays below 80 °C. That is why laser cleaning is approved by Ford for AHSS roof joints, by Boeing for 2024-T3 fuselage skin, and by Lloyd’s Register for marine-grade 5083 aluminum.

Warum Klear Laser wählen

Klear Laser provides a robust support infrastructure designed specifically for high-uptime industrial environments utilizing pulsed laser cleaning technology. Our engineering team possesses deep expertise in the physics of laser ablation, assisting operators in fine-tuning pulse widths and frequency settings. This ensures that rust removal is aggressive enough to clean heavy oxidation while maintaining complete substrate safety on delicate metals.

We stand behind our equipment with a comprehensive warranty that covers critical components, including JPT and Raycus laser sources. This coverage is essential for industrial clients who rely on continuous operation to replace chemical stripping methods. We understand that the reliability of the fiber laser source is the backbone of your production line, and our warranty terms reflect our confidence in the equipment’s longevity.

To minimize operational downtime, we maintain a domestic inventory of essential spare parts and consumables. Operators can quickly access protective lenses, focus mirrors, and scanning head components necessary for maintaining optimal beam quality. Rapid logistics for these parts ensures that your laser cleaning systems return to service immediately after scheduled maintenance intervals.

Our value proposition is built on the understanding that industrial laser adoption requires more than just hardware. We provide the technical partnership necessary to transition from traditional abrasive blasting to precise laser surface treatment. By securing your investment with superior support and readily available parts, Klear Laser ensures your facility achieves maximum efficiency and environmental compliance.
