Uv In Printing: Case Study

A midsize automotive parts supplier in Ohio struggled with outdated pad printing for marking ABS plastic housings. Their six-station pad line required 45-minute changeovers between part numbers and generated significant VOC emissions. The solvent-based inks needed four hours of cure time before parts could be packaged, creating a production bottleneck and requiring extensive work-in-progress storage. Quality issues plagued the operation, with adhesion failures reaching 8% on textured surfaces and frequent cleaning of ink cups disrupting workflow.

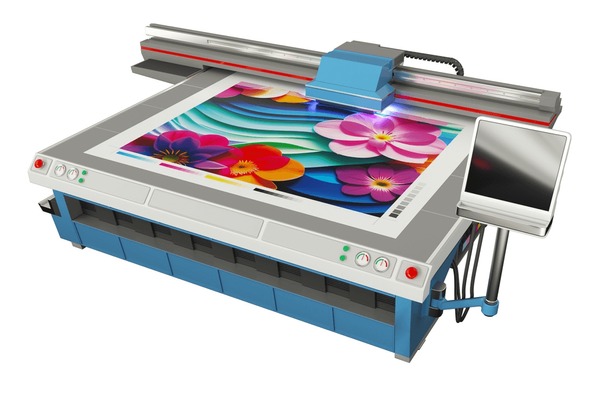

The facility installed a Klear Laser UV-LED flatbed printing system with a 600 x 900 mm bed and dual CMYK+White printheads. The system integrated directly with their existing conveyor and MES software for automated job sequencing. UV-curable inks formulated for low-surface-energy plastics eliminated the need for flame pretreatment. Instant LED curing at 395 nm allowed immediate handling and packaging, while the digital workflow reduced changeover time to under three minutes through barcode-driven job recall.

Results materialized within the first production quarter. Overall equipment effectiveness jumped from 62% to 89%. The operation eliminated 240 gallons of solvent annually and recovered 2,000 square feet of floor space previously dedicated to curing racks. Print quality improved dramatically, with 99.7% first-pass yield and 3D embossed effects added for premium product lines without additional processing steps.

Comparison of Industrial Marking Methods

This transition enabled the manufacturer to accept just-in-time orders that were previously impossible, including same-day rush jobs for aftermarket clients. The digital workflow eliminated plate storage and artwork revision costs, while the precise ink deposition reduced material consumption by 40%. Their production flexibility now supports custom serialization and date coding that integrates with automotive traceability requirements without secondary operations.

Hauptmerkmale und Vorteile

Klear Laser’s UV printing solutions excel through advanced component integration, delivering unmatched precision and reliability for industrial applications. Our core strength lies in the synergy between high-performance UV laser sources and sophisticated print heads, enabling superior mark quality and process control.

Laser Source Excellence: We utilize premium UV laser sources (typically 355nm wavelength) from industry leaders like JPT Optoelectronics or Raycus Fiber Laser. These sources deliver exceptional beam quality (M² < 1.5), high power stability (±3%), and precise power control essential for consistent UV interaction with diverse substrates. This ensures efficient energy transfer for deep UV curing or ablation with minimal thermal impact.

Printing Head Innovation: Our print heads feature high-speed galvanometer scanners and advanced telecentric optics, achieving exceptional beam pointing stability (<20 µrad) and round spot profiles (<50µm diameter). This enables ultra-fine feature resolution (<20µm) at high scanning speeds (>1000 mm/s), crucial for detailed graphics and micro-patterns. Integrated real-time substrate monitoring ensures optimal focus and prevents damage during processing.

Industrielle Anwendungen

UV printing is widely used in the automotive, aerospace, and marine industries due to its precision, durability, and eco-friendly properties. In automotive manufacturing, UV printing marks serial numbers, barcodes, and logos on interior and exterior components such as dashboards, switches, and control panels. The process uses UV-curable inks that bond instantly to substrates when exposed to ultraviolet light, ensuring smudge-free, high-resolution graphics.

In aerospace applications, UV printing is employed for labeling instrument panels, avionics housings, and cabin interior components. These markings must withstand extreme temperatures, UV exposure, and chemical cleaning agents, all of which UV-printed labels endure without fading. The instant curing process reduces production downtime, making it ideal for high-reliability environments.

Marine equipment manufacturers use UV printing for control panels, gauges, and signage exposed to saltwater, humidity, and constant sunlight. The resistance of UV-printed graphics to corrosion and abrasion ensures long-term legibility in harsh marine conditions. This makes UV printing a superior alternative to traditional solvent-based methods.

Klear Laser integrates UV printing solutions that support industrial-grade coding and marking, ensuring compliance with sector-specific standards in automotive, aerospace, and marine manufacturing.

Warum Klear Laser wählen

Klear Laser delivers 24/7 technical support with sub-60-minute response times for urgent UV printing system issues. Our certified engineers provide remote diagnostics and on-site assistance to minimize production downtime. This ensures continuous operation for high-volume manufacturing environments.

All UV printing machines include a standard two-year warranty covering lasers, optics, and motion systems. Extended warranty options up to five years are available with no hidden exclusions. Our warranty terms are transparent and fully transferable to new equipment owners.

Genuine spare parts for UV printing systems are stocked in global warehouses for immediate shipment. Critical components like UV LED arrays and printhead nozzles ship within 24 hours. We maintain a 98% parts availability rate across all current and legacy models.
