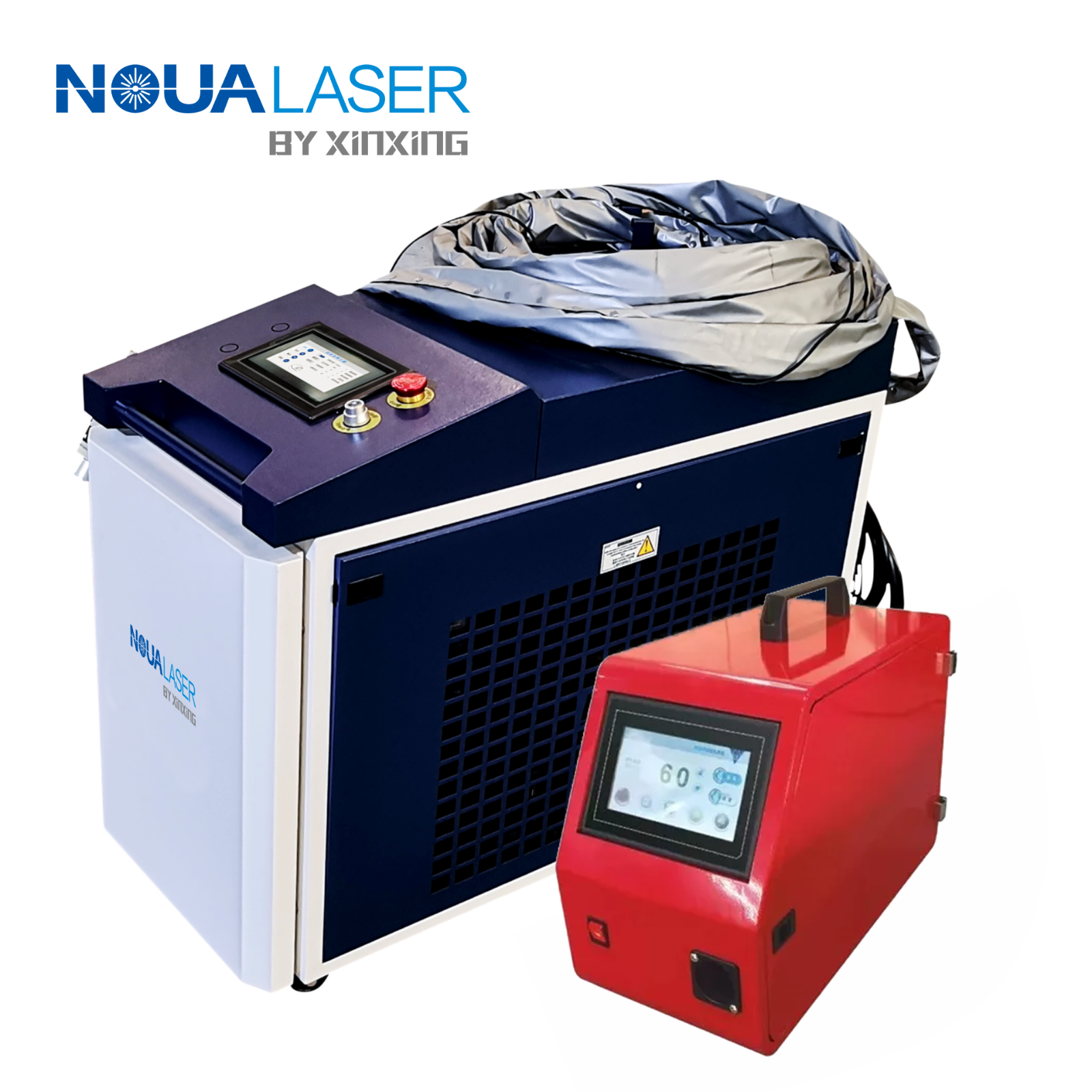

3-In-1/Rust Removal/Cutting/Welding: Technical Specifications

Industrial manufacturing demands flexibility. A 3-in-1 laser system integrates pulsed cleaning, precision cutting, and high-strength welding into one platform. This convergence eliminates multiple workstations, reduces capital expenditure, and streamlines production workflows. The key lies in mastering three fundamental parameters: wavelength selection, pulse energy control, and thermal management.

Wavelength determines material interaction at the molecular level. Fiber lasers operate at 1064 nm, the optimal spectrum for metal processing across all three functions. This near-infrared wavelength penetrates oxide layers while reflecting minimally off metallic surfaces, making it ideal for rust removal and welding alike. UV printing systems operate at 355 nm for non-metallic substrates, but industrial 3-in-1 platforms standardize on 1064 nm for universal metal compatibility. The wavelength consistency allows shared optics and reduces system complexity.

Pulse energy directly governs process control and substrate safety. Pulsed laser cleaning machines typically deliver 1-20 mJ pulses with nanosecond durations to vaporize contaminants without ablating base material. Higher pulse energies up to 100 mJ enable thick rust layer removal, while lower energies protect sensitive substrates like aluminum or galvanized steel. For welding, continuous wave (CW) modes or high-frequency modulation above 50 kHz replaces discrete pulses with sustained energy delivery. This dual-mode capability requires sophisticated power supply architecture and real-time feedback loops.

Thermal management separates industrial-grade equipment from light-duty alternatives. Fiber laser welding machines generate substantial heat at the source and at the workpiece. Water-cooled systems maintain diode temperatures within ±0.5°C stability, ensuring consistent beam quality at 6-8 kW power levels. Pulsed laser cleaning operates at lower average powers (200-2000W) but demands rapid duty cycle response. Closed-loop chillers with 5-10 kW cooling capacity prevent thermal drift during extended production runs. Inadequate cooling degrades beam divergence and shortens source lifespan from 100,000 hours to under 20,000 hours.

Pulse width modulation defines cleaning efficacy. Nanosecond pulses create rapid thermal expansion that ejects rust particles as plasma without melting the substrate. This cold ablation process preserves metallurgical properties critical for aerospace and automotive applications. Shorter pulse widths below 20 nanoseconds increase peak power density while reducing heat-affected zones to less than 5 microns. For welding, pulse shaping extends to millisecond durations to control melt pool geometry and prevent keyhole collapse.

Cooling architecture must accommodate variable thermal loads. A 3-in-1 system experiences idle, cleaning, cutting, and welding thermal profiles that differ by orders of magnitude. Variable-speed compressors and thermal reservoirs buffer these transitions, maintaining optical stability within 30 seconds of mode switching. The cooling loop also protects the wobble welding head’s galvanometer scanners, which operate at 600-1000 Hz and suffer positional drift above 40°C ambient temperature. Dual-circuit designs isolate source cooling from optics cooling to prevent condensation.

Industrial integration requires robust control systems. Real-time power monitoring adjusts pulse energy based on back-reflection sensors, preventing substrate damage during cleaning. For welding, seam tracking and plasma intensity feedback modulate wobble amplitude and frequency to maintain penetration depth. Cutting operations leverage height sensing to adjust focal position within ±0.1 mm across warped plates. These closed-loop systems execute 10,000 adjustments per second, compensating for material inconsistencies and environmental variables.

The 3-in-1 architecture transforms facility layouts. A single 4m x 3m workstation replaces three dedicated production cells, recovering 60 square meters of floor space. Material handling reduces from three conveyors to one, cutting cycle time by 40%. Maintenance schedules consolidate around a single chiller, source, and control system, reducing spare parts inventory by 70%. ROI typically occurs within 18 months for facilities processing 500+ parts daily across multiple operations.

Applications span heavy fabrication to precision manufacturing. Shipyards utilize 6 kW systems to remove salt corrosion, cut hull plates, and weld structural members without relocating components. Automotive tier suppliers clean stamping dies, trim excess material, and repair tool steel in sequence. The 1064 nm wavelength processes carbon steel, stainless steel, aluminum, copper, and titanium with only parameter changes, eliminating process-specific equipment investments.

Technical specifications define capability boundaries. Pulsed cleaning achieves 30 m²/hour on light rust (ISO 8501 Sa 2.5) at 500W average power. Cutting speed reaches 20 meters per minute on 6 mm mild steel with oxygen assist. Welding penetrates 5 mm stainless steel at 4 kW with a 2 mm wobble diameter. These metrics require precise pulse energy calibration: too high causes substrate pitting during cleaning; too low produces incomplete fusion in welding. Factory calibration ensures ±2% energy stability across the full operating range.

Future developments target adaptive process blending. Emerging systems overlay pulsed cleaning during welding to remove oxidation in real-time, improving joint quality in contaminated environments. Variable pulse trains can cut thin sections and immediately weld adjacent seams without parameter interruption. These capabilities demand advanced cooling systems with 15 kW capacity and sub-second thermal response. Klear Laser engineers these integrated solutions for manufacturers demanding maximum versatility from capital equipment.

Caratteristiche e vantaggi principali

The Klear Laser 3-in-1 machine excels through its integrated design powered by top-tier components. Its foundation is a high-power fiber laser source, chosen for its exceptional beam quality and stability across all three functions. The multi-functional processing head is the key differentiator, featuring quick-swappable optics and specialized modules optimized for rust removal, precision cutting, and deep welding.

For rust removal, the system utilizes ultra-short pulse widths (down to 100ns) generated by the fiber source. This delivers high peak power for effective oxide ablation while maintaining exceptional sicurezza del substrato. The processing head incorporates a specialized scanner and protective window to ensure consistent focus and shield the optics from debris during cleaning.

When configured for welding, the machine leverages JPT or Raycus high-brightness laser sources known for their deep penetration capabilities. The core of its welding prowess is the intelligent wobble welding head. This head dynamically moves the laser spot in a controlled pattern, ensuring superior penetration depth and joint stability even on complex or dissimilar materials. Integrated cooling and debris management protect the optics during high-duty-cycle welding.

For cutting, the system employs a dedicated cutting head featuring adaptive focusing optics. This head delivers a finely focused, high-energy density spot for clean, fast cutting across diverse materials. The head design emphasizes efficient debris ejection and minimizes dross adhesion, crucial for industrial throughput. Seamless integration between the source and specialized heads defines the machine’s versatility and performance.

Applicazioni industriali

The 3-in-1 laser system combining rust removal, cutting, and welding is widely used in the automotive, aerospace, and marine industries. In automotive manufacturing and restoration, it enables precise rust removal from chassis and engine components without damaging the underlying metal. The system’s pulsed laser cleaning function operates with adjustable pulse width, ensuring selective ablation of corrosion while preserving substrate integrity—critical for thin-gauge steel and aluminum body panels.

In aerospace applications, the system supports maintenance of aluminum alloys, titanium, and nickel-based superalloys used in airframes and engines. The precision cleaning function removes oxides and contaminants from turbine blades without altering metallurgical properties. Welding capabilities with high-power JPT or Raycus fiber laser sources ensure deep penetration and minimal heat input, ideal for fuel nozzles and structural joints. Wobble welding heads enhance bead quality and reduce porosity in critical assemblies.

Marine industry use includes hull maintenance, propeller repair, and offshore platform refurbishment. Saltwater exposure accelerates corrosion, and the pulsed laser cleaning function safely strips rust from carbon steel and stainless steel substrates without creating secondary waste. Cutting and welding functions allow on-site repairs of thick-section marine-grade steels and aluminum superstructures with high repeatability.

Perché scegliere Klear Laser

Klear Laser delivers 24/7 technical support with guaranteed response times under two hours. Our team provides remote diagnostics, on-site assistance, and hands-on training to ensure minimal production disruption. This proactive approach keeps industrial operations running smoothly.

Our standard two-year warranty covers all parts and labor, with extended options for high-demand environments. Warranty terms are transparent and specifically designed for industrial reliability. This reduces long-term ownership risks and total cost of ownership.

Spare parts are globally stocked with 95% availability and same-day shipping for critical components. We maintain direct manufacturer relationships to guarantee compatibility and longevity. This eliminates costly downtime during maintenance or repairs.
