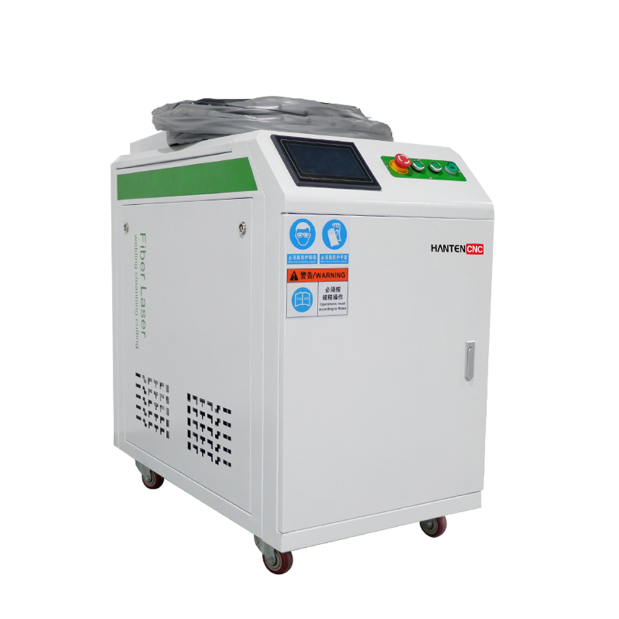

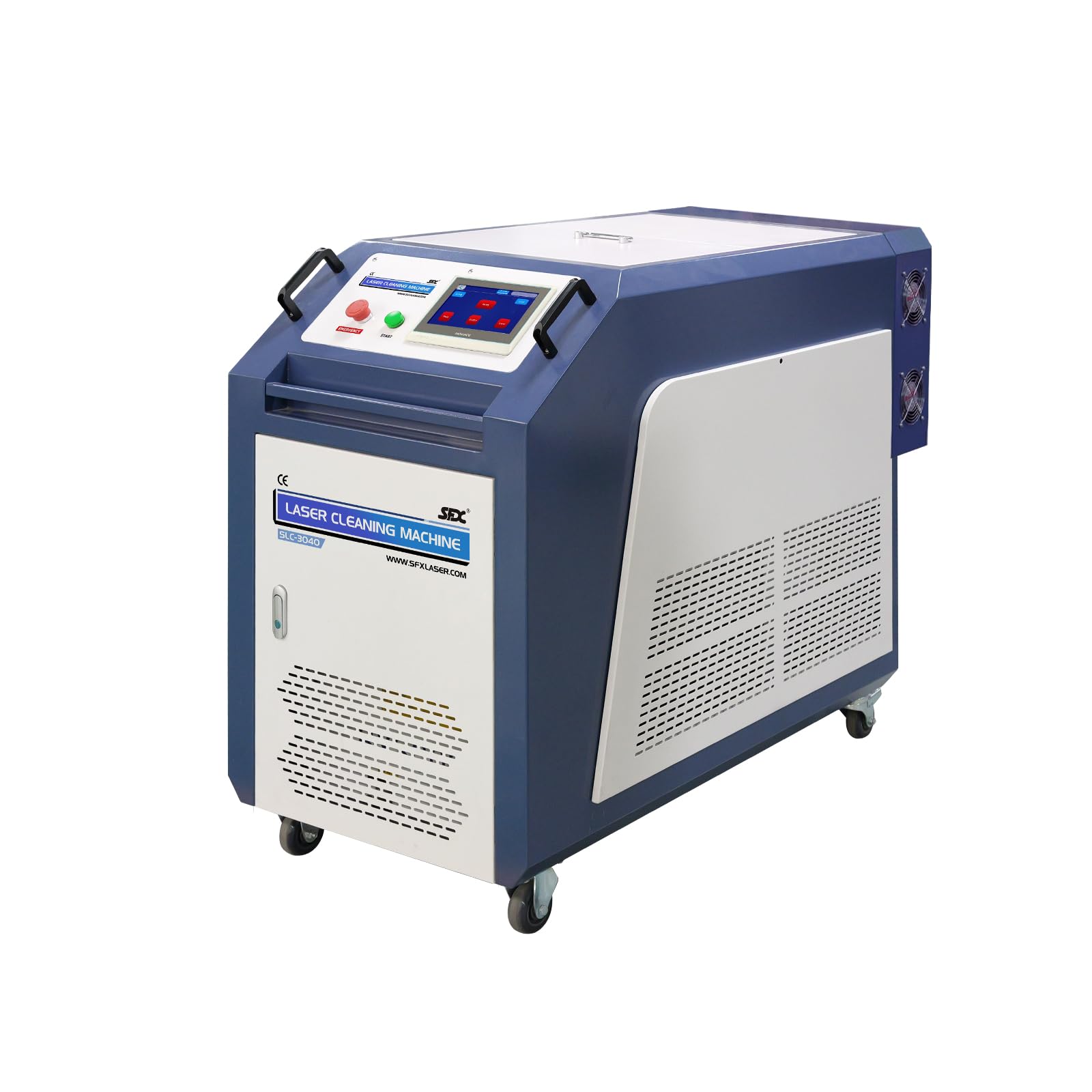

Continuous Laser Cleaning Machine: Manufacturing Quality

Klear Laser subjects all continuous laser cleaning machines to rigorous 1,000-hour accelerated aging tests. These tests simulate extreme operational conditions, including fluctuating ambient temperatures and continuous high-power cycling. We monitor critical components like diode pumps, cooling systems, and optical paths for thermal drift or performance degradation. This ensures field reliability and prevents unexpected failures during industrial rust removal applications.

Beam analysis is performed using calibrated Ophir power meters and PrismCams beam profilers. We measure M² factor, beam parameter product (BPP), and power density distribution across the entire operational range. This guarantees a stable Gaussian profile essential for consistent rust removal without substrate micro-cracking. Precise beam quality directly impacts safety on sensitive materials like aircraft aluminum or historical steel artifacts.

Our QC protocols enforce ISO 9001 standards at every production stage. Each unit undergoes in-process verification of beam alignment, thermal management, and safety interlocks before final acceptance testing. Full traceability of components and calibration records is maintained throughout the manufacturing lifecycle. This systematic approach ensures every machine meets stringent substrate safety requirements for critical industries.

The table below compares traditional rust removal methods against Klear Laser’s continuous wave systems:

Caratteristiche e vantaggi principali

The Klear Laser continuous-duty laser cleaning machine employs precision pulsed fiber laser technology engineered for uninterrupted industrial operation. Our systems integrate JPT MOPA laser sources that generate high-frequency nanosecond pulses, enabling sustained cleaning cycles without thermal accumulation. This design delivers superior contaminant removal while maintaining substrate integrity during extended production runs.

The laser source serves as the performance cornerstone, producing 1064nm pulses with peak powers exceeding 20kW and beam quality M² < 1.6. JPT’s master oscillator power amplifier architecture provides adjustable pulse widths from 2ns to 500ns, allowing precise tuning for each application. This versatility ensures optimal cleaning aggression for heavy oxide layers while protecting sensitive base materials from heat-affected zones.

Our proprietary cleaning head features a high-speed galvanometric scanner with dynamic focus compensation across 200mm depth of field. The 2D scanner achieves vector speeds up to 10,000mm/s with 0.02mm positioning accuracy, maintaining uniform energy distribution on complex geometries. Integrated back-reflection monitoring and real-time power modulation prevent substrate damage during irregular surface processing.

Pulse width control is paramount for safe rust removal on thin-gauge metals and alloy components. Ultra-short 2-10ns pulses induce rapid plasma expansion that ejects corrosion without thermal conduction into the parent material. This cold ablation mechanism preserves stainless steel passivation layers and prevents distortion on aluminum honeycomb panels, while longer 200-500ns pulses efficiently tackle heavy mill scale on structural steel.

Industrial deployments span continuous automotive weld seam preparation, aerospace decoating operations, and marine vessel maintenance where 24/7 reliability is critical. The IP65-rated optical chain withstands foundry dust and salt spray environments. Our systems achieve cleaning rates of 5-12m²/hour on moderate rust while reducing consumable costs by over 80% compared to abrasive blasting.

Applicazioni industriali

Continuous laser cleaning machines excel in demanding industrial sectors where precision surface preparation is critical. They are extensively deployed in the Automotive industry for rust removal from transmission components, cleaning of injection molds, and pre-painting preparation of body panels, ensuring optimal paint adhesion without abrasion. In Aerospaziale, these systems are vital for removing corrosion, old coatings, and contaminants from critical aircraft components like turbine blades, wing structures, and landing gear, meeting stringent safety and quality standards. The Marina sector utilizes them for descaling ship hulls, removing marine biofouling coatings, and treating corrosion on offshore structures, enhancing longevity and efficiency in harsh environments.

Applicable Materials for Laser Cleaning

Laser cleaning achieves unparalleled precision by utilizing ultra-short pulse widths (often nanosecond or picosecond scale) that vaporize contaminants without significant heat transfer to the substrate, ensuring material integrity. This non-contact, dry process eliminates secondary waste streams, aligning with Klear Laser’s commitment to sustainable manufacturing solutions.

Perché scegliere Klear Laser

Klear Laser provides comprehensive technical support to ensure seamless integration and operation of our laser systems. Our team of engineers offers remote diagnostics, on-site service, and real-time assistance to minimize downtime and maximize productivity in industrial environments.

We back every machine with a standard 2-year warranty covering core components, including the laser source and control system. This warranty reflects our confidence in the durability and reliability of our fiber laser technology, giving customers long-term peace of mind.

Spare parts for all models, including pulsed and continuous laser cleaning machines, are stocked globally for rapid delivery. Our modular designs ensure easy replacement, reducing maintenance time and keeping your operations running efficiently.
