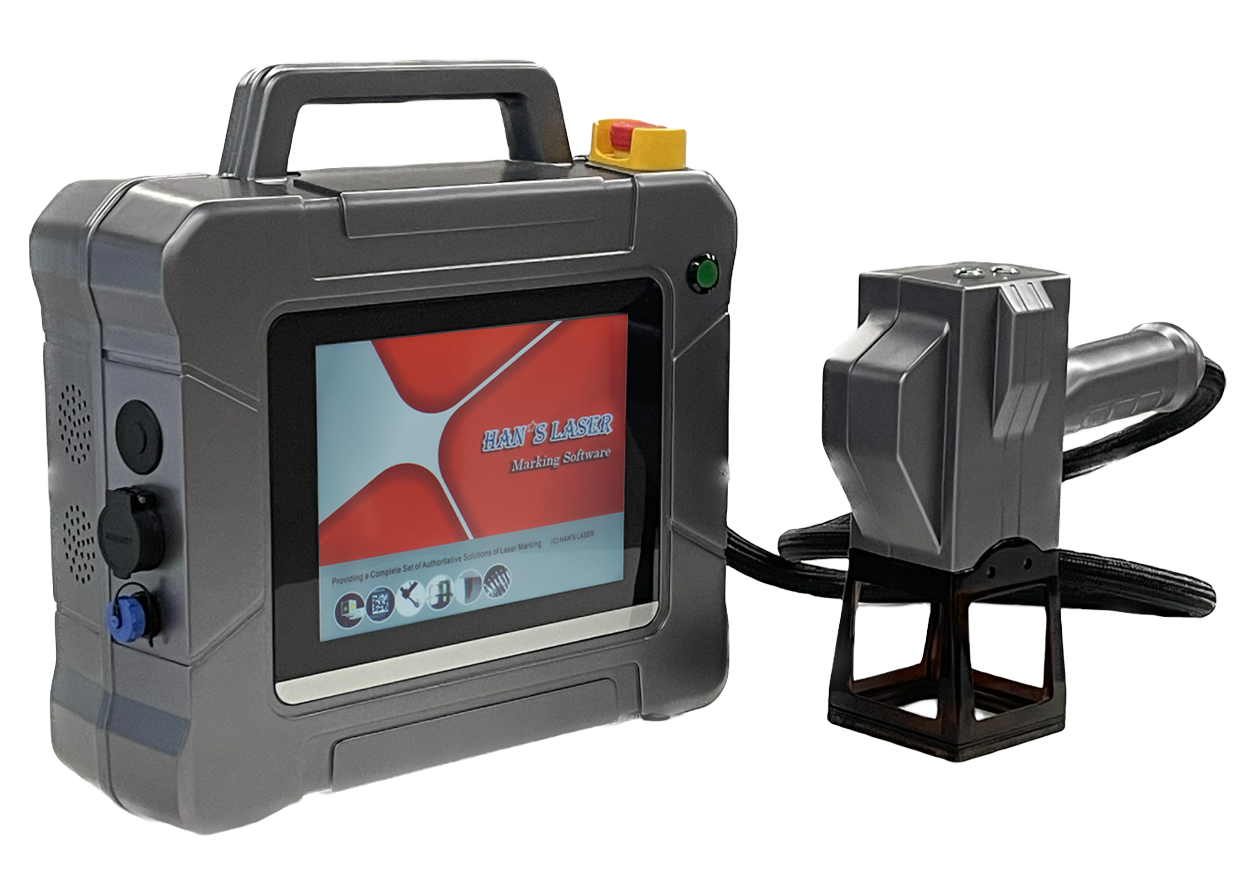

Laser Marking Machine Portable: Case Study

Aerospace technicians at a major aircraft MRO facility faced critical traceability gaps during landing gear overhauls. Manual chemical etching left inconsistent serial numbers vulnerable to solvent wear, causing 12% part misidentification and costly regulatory delays. Their Klear Laser PLY-30 portable marking system now engraves high-contrast Data Matrix codes directly onto titanium alloy components in under 30 seconds per part. This eliminated chemical handling permits and reduced part processing time by 90% while meeting AS9100 traceability standards.

Field deployment proved transformative during hangar refurbishment projects. Technicians marked 200+ complex geometries daily across engine mounts and hydraulic fittings without disassembly. The IP65-rated handheld unit operated reliably amid metal shavings and hydraulic fluid, maintaining micron-level precision on curved surfaces. Permanent laser marks withstood 500+ hour salt spray tests where ink-based labels failed within hours, ensuring lifetime part tracking.

The efficiency leap over legacy methods is quantifiable. Chemical etching required hazardous material storage, fume extraction, and multi-step masking that consumed 5 minutes per component. Dot peen marking distorted thin-walled housings and needed frequent stylus changes. Laser marking achieves superior adhesion without mechanical stress or consumables.

Klear Laser’s 30W MOPA fiber source (30kHz–1MHz pulse control) enables optimal contrast on anodized aluminum without charring. The integrated rotary axis handles cylindrical components while wobble-free galvanometers maintain 0.02mm line consistency. Operators achieve 18-month ROI through eliminated consumables and reduced NDT rework cycles, proving portability never compromises industrial-grade performance.

Caratteristiche e vantaggi principali

Klear Laser portable marking machines redefine industrial traceability through premium component integration. Our systems eliminate consumables while delivering permanent, high-contrast marks on virtually any substrate. The superiority begins with two critical elements: the laser source and marking head.

The JPT MOPA fiber laser source provides unmatched pulse width control from 2 to 500 nanoseconds. This flexibility allows precise energy delivery for everything from annealing stainless steel to foaming plastics without substrate damage. The air-cooled architecture ensures 100,000+ hour lifespan while eliminating maintenance-intensive chillers. Operators achieve consistent results across temperature extremes thanks to built-in power stabilization.

Our marking head features a high-speed digital galvanometer scanner with precision-grade optical coatings. This assembly reaches velocities exceeding 10,000 mm/s while maintaining positional accuracy under 0.001 mm. The compact, shock-resistant housing protects sensitive optics from factory floor vibration. Advanced thermal compensation algorithms prevent drift during extended marking cycles.

System integration creates true portability without performance compromise. The entire unit weighs under 10 kilograms and operates on AC or optional battery power for field applications. Wireless connectivity enables remote file transfer and parameter adjustment from mobile devices. Proprietary software supports vector graphics, serialization, and barcode generation through an intuitive touchscreen interface.

Industrial users benefit from abrasion-resistant marks that survive chemical exposure and thermal cycling. The non-contact process eliminates tool wear and mechanical stress on components. Klear Laser systems reduce setup time from hours to minutes while removing ink, labels, and stencil costs from operations.

Applicazioni industriali

Portable laser marking machines excel in demanding industrial environments where permanence, precision, and portability are critical.

Automotive: They mark VIN numbers, part numbers, and safety-critical identifiers on chassis, engines, transmissions, and components. This ensures traceability, fraud prevention, and compliance with global regulations. Laser markings resist oils, fuels, and high-pressure washes.

Aerospaziale: These devices mark turbine blades, aircraft frames, landing gear, and avionics housings. Permanent markings survive extreme temperatures, jet fuels, and rigorous inspections. They enable precise serialization and maintenance tracking.

Marina: Used on ship hulls, propellers, valves, and corrosion-prone fittings. Laser marks withstand saltwater immersion, UV degradation, and mechanical abrasion. Critical for regulatory compliance and long-term identification in harsh aquatic environments.

Perché scegliere Klear Laser

Klear Laser provides comprehensive technical support for all portable laser systems, with remote diagnostics and live assistance available in multiple languages. Our team ensures fast resolution for integration, operation, or maintenance challenges, minimizing downtime for industrial users.

We offer a standard 2-year warranty on all core components, including the laser source, control system, and scanning head. This warranty reflects our confidence in the durability and reliability of our portable laser equipment under demanding industrial conditions.

Spare parts are stocked globally and available within 72 hours for critical components. We supply wear items such as nozzles, lenses, and cooling units at competitive rates, ensuring long-term uptime and serviceability across all machine models.
