Laser Welding Strength: Case Study

A Tier 1 automotive supplier faced critical weld failures in aluminum battery tray assemblies. Traditional TIG welding caused inconsistent penetration and excessive heat distortion, leading to 12% scrap rates and costly field recalls. Their production line required a robust, repeatable solution meeting stringent EV safety standards for structural integrity.

Klear Laser deployed a fiber laser welding system with a Raycus 3000W source and dynamic wobble head. Precise parameter control achieved 3.2mm consistent penetration in 5052 aluminum, while the 500Hz wobble pattern eliminated hot cracking and reduced heat input by 40%. Cycle time dropped from 45 seconds to 13 seconds per joint with zero post-weld straightening.

This shift delivered immediate strength and efficiency gains. Tensile strength retention exceeded 95% of base material, outperforming TIG’s 82% due to minimized grain growth. The cleaner fusion zone eliminated porosity defects, boosting first-pass yield to 99.8% and saving $220,000 monthly in scrap and rework.

The laser solution eliminated shielding gas consumption and fume extraction costs while meeting ISO 15614-12 automotive weld certification. This case proves fiber laser welding delivers superior metallurgical strength and operational efficiency for mission-critical components. Klear’s engineered beam control ensures optimal energy coupling for maximum joint integrity in high-volume manufacturing.

Caratteristiche e vantaggi principali

Klear Laser welding strength derives from precision-engineered components that maximize power density and process control. Our systems utilize either JPT or Raycus fiber laser sources paired with advanced wobble welding heads. This combination delivers deeper penetration, superior beam quality, and exceptional joint strength across industrial applications.

The laser source is the foundation of welding performance. JPT sources provide exceptional power stability below 2% fluctuation and beam quality M² < 1.6, enabling consistent deep penetration up to 5mm in stainless steel. Raycus sources offer robust performance with rapid response times, ideal for high-speed production environments requiring reliable strength.

Wobble welding heads transform static laser spots into programmable oscillation patterns. This technology increases weld width by 200-400% while maintaining precise depth control, eliminating common defects like porosity and cracking. The result is dramatically improved tensile strength and fatigue resistance in critical joints.

These components work in synergy to replace traditional MIG/TIG processes in automotive, aerospace, and tooling applications. The superior strength meets AWS D17.1 standards for critical structures while reducing heat input by 60%. Manufacturers achieve Class A weld quality with 3x faster production speeds and minimal post-processing.

Applicazioni industriali

Laser welding strength excels in demanding industrial sectors requiring precision and durability. In automotive, it’s vital for electric vehicle battery assemblies and lightweight structural components, ensuring high-integrity joins in materials like aluminum and high-strength steel.

Aerospace relies on laser welding for critical airframe structures and engine components, where deep penetration and consistent strength are non-negotiable for safety and performance. Marine applications leverage the process for shipbuilding and offshore structures, combating corrosion and extreme pressures.

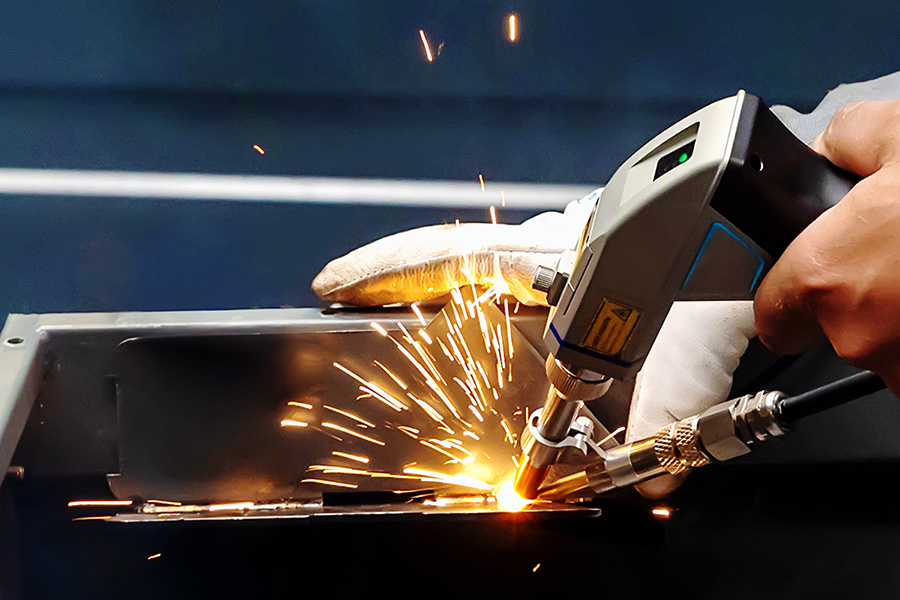

Klear Laser’s Fiber Laser Welding Machines deliver exceptional weld strength through deep penetration capabilities and stable JPT or Raycus laser sources. Our wobble welding heads enhance precision, ensuring robust, repeatable welds crucial for these high-stakes industries.

Perché scegliere Klear Laser

Klear Laser provides comprehensive technical support to ensure seamless integration and operation of our industrial laser systems. Our team of engineers offers remote diagnostics, on-site service, and real-time assistance to minimize downtime and maximize productivity for your manufacturing workflow.

We back every machine with a robust 2-year warranty covering critical components, including the laser source (JPT or Raycus), galvanometers, and control systems. This warranty reflects our confidence in the durability and precision of our equipment under demanding industrial conditions.

Spare parts are readily available through our global logistics network, ensuring fast replacement of wear components like nozzles, lenses, and protective covers. We maintain a high stock volume and offer expedited shipping to keep your operations running without extended interruptions.
