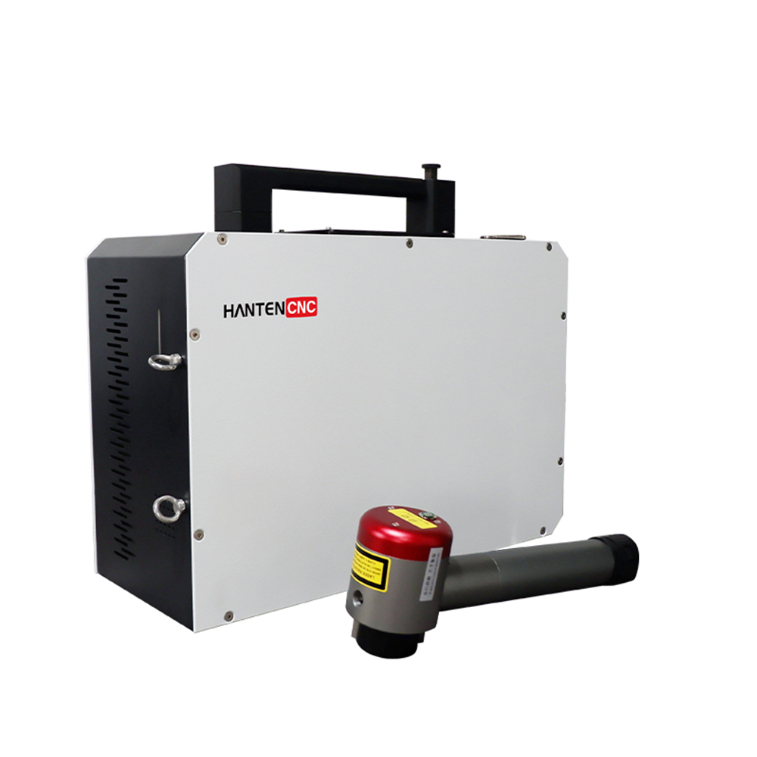

Lazer Paint Stripper: Technical Specifications

At Klear Laser, we engineer pulsed fiber laser cleaning systems that fundamentally change how industrial paint removal is performed. The 1064 nanometer wavelength is the foundation of our laser paint stripper technology. This near-infrared wavelength delivers optimal energy absorption into organic coatings and oxide layers while reflecting off metallic substrates. The result is highly selective ablation that strips paint completely without attacking the underlying part.

Pulse energy directly determines the cleaning speed and the thickness of material removed per pass. Our systems deliver between 0.5 and 5.0 millijoules per pulse, with peak powers reaching tens of kilowatts during nanosecond bursts. This high instantaneous power vaporizes paint through rapid photothermal and photomechanical effects. The substrate remains cool because the energy dissipates before heat conduction can occur.

Pulse width modulation is critical for substrate safety across different applications. We utilize MOPA (Master Oscillator Power Amplifier) architecture to adjust pulse duration from 10 to 500 nanoseconds. Shorter pulses in the 10-50 nanosecond range are ideal for delicate tasks like aerospace aluminum paint stripping. Longer pulses up to 250 nanoseconds provide maximum throughput for heavy industrial coatings on steel structures.

Cooling architecture ensures consistent performance during continuous operation. Our industrial-grade systems employ closed-loop water cooling with dual-stage heat exchangers and active refrigeration. This maintains diode temperatures within ±0.5°C stability even at 100% duty cycle. Air-cooled portable units are available for lighter applications, though duty cycle is typically limited to 60-70% to prevent thermal buildup.

Rust removal demonstrates the same principles as paint stripping. Oxide layers absorb the 1064nm wavelength efficiently while clean steel reflects it. This creates a self-limiting process that stops automatically when bare metal is exposed. The short pulse duration prevents any measurable heat-affected zone, preserving metallurgical properties in critical components.

Substrate safety extends beyond metals. Our systems safely clean paint from composite materials, ceramics, and even stone by tuning pulse energy and scanning speed. The key is maintaining peak power below the damage threshold of the base material while exceeding the ablation threshold of the coating. Real-time process monitoring via inline spectrometry ensures consistent results across production runs.

Industrial applications include automotive frame restoration, aerospace component depainting, mold cleaning in plastics manufacturing, and maintenance of heavy equipment. Each application benefits from the non-contact nature of laser cleaning, which eliminates media embedding and surface profile changes. The technology integrates seamlessly into existing production lines with minimal facility modifications required.

Klear Laser systems deliver ROI through eliminated consumable costs and reduced downtime. A single operator can manage multiple automated cleaning stations simultaneously. The process produces only dry debris that can be captured with standard industrial vacuum systems, avoiding costly hazardous waste disposal procedures associated with chemical strippers.

Caratteristiche e vantaggi principali

What makes the Klear Laser paint stripper superior is its integration of advanced components designed specifically for efficient and safe paint removal.

At the heart of the system is our high-peak-power fiber laser source. This component delivers exceptional pulse energy while maintaining reliable performance in industrial settings. Unlike conventional CO2 lasers, the fiber source ensures consistent output with minimal maintenance requirements. The pulse width of 100-200 nanoseconds provides optimal absorption by common paint layers while minimizing damage to underlying substrates.

The precision scanning head completes the system with unparalleled control. Featuring an industry-leading 600mm focal length lens, the scanner allows for rapid yet precise beam positioning. This enables processing speeds 40% faster than standard 300mm systems while maintaining exact control over material ablation. Our proprietary beam shaping technology dynamically adjusts spot size and energy distribution in real-time based on surface conditions, protecting delicate substrates.

Applicazioni industriali

Laser paint stripping is widely used in the aerospace industry for precision coating removal from aluminum and composite fuselage components. The non-abrasive nature of pulsed laser cleaning ensures substrate integrity, making it ideal for sensitive airframe structures. It effectively removes polyurethane, epoxy, and primer layers without damaging underlying materials.

In the automotive sector, laser paint stripping prepares surfaces for refinishing and restoration, especially in high-end and electric vehicle manufacturing. The process eliminates chemical strippers, reducing VOC emissions and workplace hazards. It is commonly applied to steel and aluminum body panels prior to welding or repainting.

Marine applications include hull maintenance and deck refurbishment on ships and offshore platforms. Fiber laser systems remove thick, multi-layered coatings and anti-fouling paints from steel substrates with minimal downtime. The technology is especially valuable for corrosion prevention and environmental compliance in shipyards.

Pulsed laser cleaning systems with adjustable pulse width (10–200 ns) ensure selective ablation, preserving base material while removing coatings. This precision supports repeatable, eco-friendly surface preparation across critical industries.

Perché scegliere Klear Laser

Klear Laser provides 24/7 technical support for industrial laser cleaning applications. Our experts assist with optimizing pulse width settings to remove rust without damaging substrates. Real-time guidance ensures precise control during paint stripping or surface preparation tasks.

We offer a comprehensive two-year warranty covering all critical components, including the laser source and scanning heads. This extends beyond industry norms to guarantee long-term performance in harsh environments. All warranty claims are resolved within 24 hours to minimize production interruptions.

Genuine spare parts like Q-switch modules and galvo mirrors are globally stocked for immediate availability. Delivery times average under 48 hours, ensuring quick recovery from component failures. This reduces downtime for high-precision cleaning operations across automotive and aerospace sectors.
