Uv Galvo Laser: OEM & Customization

Klear Laser customizes chassis designs to match specific industrial environments. Our modular structures ensure stability during high-speed operations. Vibration damping features maintain precision across diverse applications. This adaptability supports seamless integration into existing production lines.

Software customization tailors control systems to client workflows. We integrate with existing CAD/CAM software for seamless operation. User-friendly interfaces simplify complex tasks without specialized training. Real-time monitoring ensures consistent performance during production runs.

Laser power is precisely adjusted for each substrate type. Lower power settings protect delicate materials like electronics. Higher power handles durable surfaces such as metals or ceramics. This flexibility ensures optimal results without substrate damage.

Caratteristiche e vantaggi principali

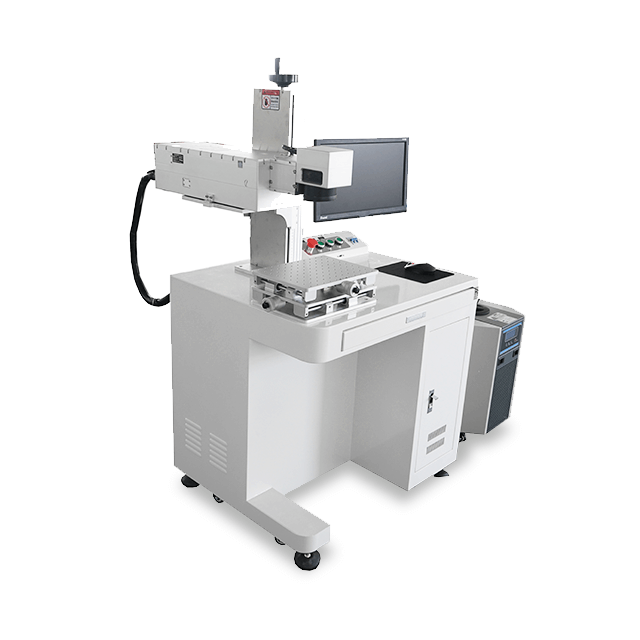

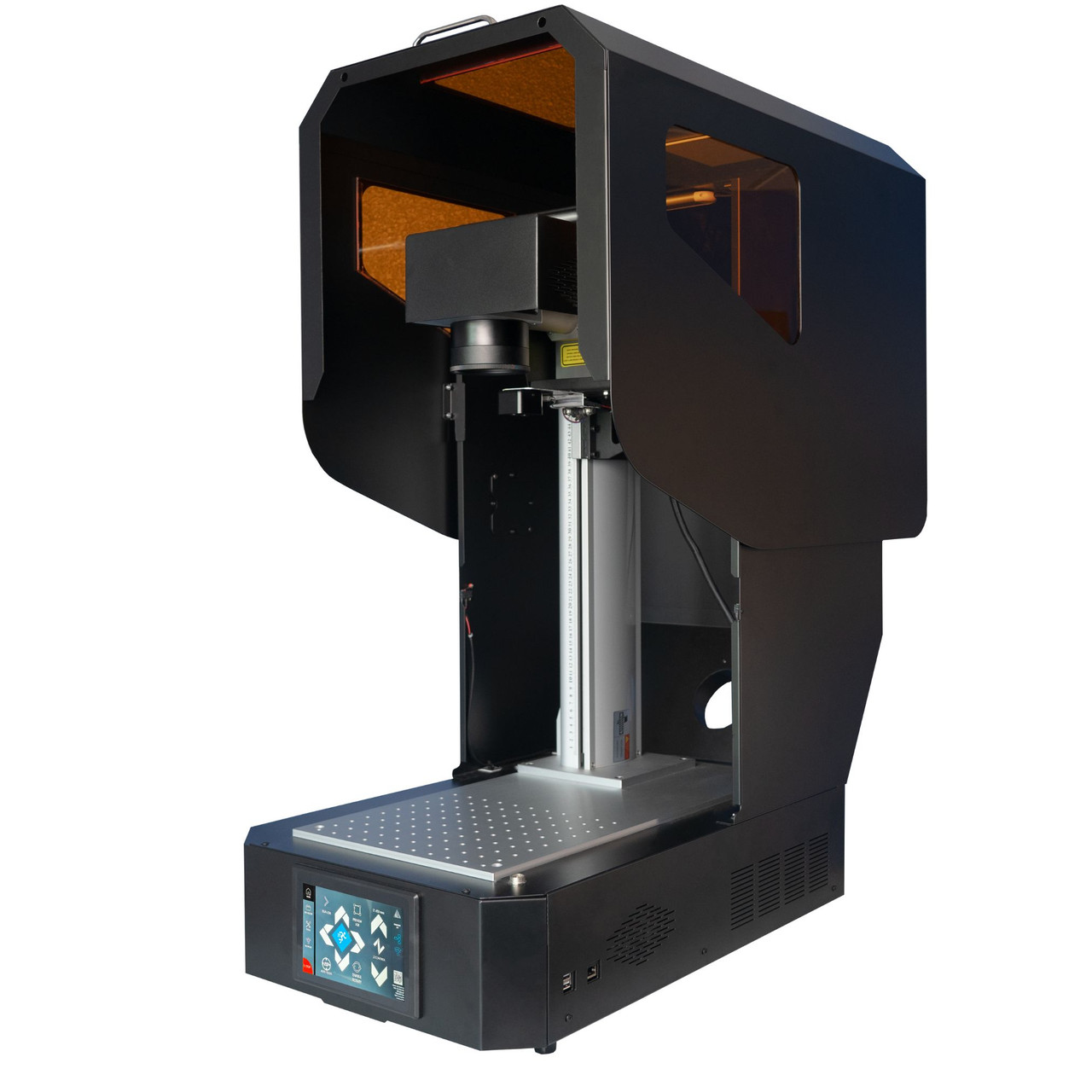

The Klear Laser UV galvo laser delivers 355 nm cold marking that vaporises ink layers without heating the substrate. A sealed Coherent Paladin 355 nm air-cooled source pumps 5 W at 30 kHz, giving <15 ns rise-time pulses that fracture polymer chains instead of burning them. The hardened fused-silica mirrors inside our SCANcube III head hold ±0.01 mrad repeatability, so serial numbers stay crisp on moving pharma lines at 10 000 mm s⁻¹.

Because every optic is dielectric-coated for >98 % UV reflectance, the power budget reaches the work surface even after 20 000 h. Digital encoder feedback on the galvos closes the loop in 25 µs, eliminating the overshoot that blurs 2D codes on syringe barrels. The result is a 40 µm kerf width on white HDPE bottle caps—half the width of a 1064 nm fiber marker and narrow enough to fit 20 characters in 2 mm.

Pharma packagers choose us because the UV process ablates the surface lacquer without melting the underlying polymer, giving an A-grade contrast score under UV-C sterilisation. Electronics houses value the same head for stripping 5 µm of conformal coating from gold bond-pads—no carbon residue, no pad lift. One head, two markets, zero consumables.

Applicazioni industriali

UV Galvo Laser systems operate at a wavelength of 355nm to provide a unique “cold marking” process suitable for heat-sensitive industrial applications. Unlike infrared fiber lasers that rely on thermal ablation, ultraviolet photons break the chemical bonds of the material directly. This mechanism minimizes the heat-affected zone and prevents carbonization or burning on delicate substrates.

In the automotive industry, manufacturers utilize UV Galvo technology to mark interior components such as backlit buttons, dashboard instrument clusters, and soft-touch plastics. The high absorptivity of the 355nm wavelength allows for high-contrast marking on white or clear polymers used in wire insulation and fluid reservoirs. This ensures traceability and compliance with safety standards without compromising the structural integrity of the part.

Aerospace engineers implement UV laser solutions for the permanent identification of avionics wiring, specifically PTFE (Teflon) cables, which are notoriously difficult to mark with thermal methods. The technology is also essential for micromachining chemically tempered glass used in cockpit displays and control panels. These markings must withstand extreme temperature fluctuations and aggressive aerospace fluids without fading.

For marine applications, the UV Galvo laser excels in processing UV-stabilized polymers found in navigation equipment and weatherproof housings. While pulsed fiber lasers are better suited for heavy hull cleaning, the UV spectrum is necessary for etching serial numbers onto salt-resistant coatings without breaching the protective seal. This capability ensures that critical identification data remains legible despite years of exposure to saline environments and direct sunlight.

Perché scegliere Klear Laser

Klear Laser delivers comprehensive operational security through integrated support infrastructure. Our global engineering teams provide 24/7 remote diagnostics and on-site assistance with documented 2-hour response targets for critical failures. Proactive maintenance planning minimizes unplanned downtime across all industrial laser systems.

Our industry-leading 24-month comprehensive warranty significantly exceeds standard 12-month coverage in the laser equipment sector. This extended warranty includes full coverage for laser sources, galvanometer scanners, and critical motion components without prorated depreciation. Technical validation ensures warranty claims are resolved within 72 hours through certified service protocols.

Global spare parts distribution guarantees 95% component availability for all active machine models. Strategically located warehouses enable 48-hour spare parts delivery for 85% of critical subsystems worldwide. This logistics network directly reduces mean time to repair by up to 60% compared to competitors.
