Wholesale Fiber Laser Marking Machine: Shipping & Compliance

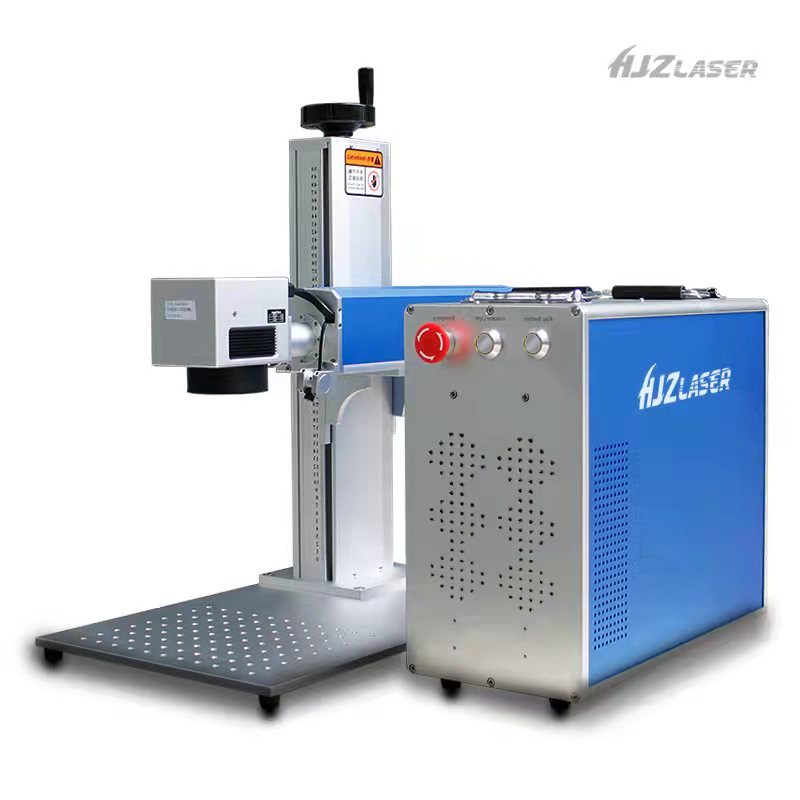

Wholesale fiber laser marking machines represent a paradigm shift in industrial product identification and traceability. These systems deliver permanent, high-contrast marks on metals, plastics, and ceramics without consumables or contact. At Klear Laser, our wholesale configurations ship globally to manufacturing facilities, machine integrators, and automation partners.

Industrial crating for fiber laser markers demands robust protection of precision optical assemblies. We engineer our export crates with reinforced plywood ISPM-15 certified timber, custom-cut foam cradles for the laser head and controller, and desiccant packs to control humidity during maritime transit. The optical fiber cable requires special coiling within a minimum bend radius of 150mm to prevent signal attenuation, while shock indicators monitor impacts exceeding 5G during handling.

Harmonized System codes classify these machines under 8456.10 for laser-operated machine tools used for material processing. This HS code covers both standalone marking workstations and gantry-mounted systems. Accurate classification ensures proper duty rates, typically ranging from 2.5% to 4.5% depending on trade agreements. Our commercial invoices explicitly detail the laser source power, marking field dimensions, and controller specifications to prevent customs delays.

Laser safety regulations mandate strict compliance for Class 4 industrial systems. IEC 60825-1 requires protective enclosures with interlocked access panels, emission indicators, and emergency stops within 0.3 seconds. Operators must wear OD6+ safety eyewear at the specific 1064nm wavelength. For US installations, FDA CDRH 21 CFR 1040.10 compliance includes a laser certification label and Accession Number. European markets require CE marking under the Machinery Directive 2006/42/EC.

| Parameter | Traditional Marking Methods | Wholesale Fiber Laser Marking Machine |
| Process Type | Inkjet, dot peen, chemical etching | Non-contact laser ablation/annealing |
| Marking Speed | 2-20 characters/second | 2000-12000 mm/second |
| Permanence | Fades, wears off, susceptible to chemicals | Permanent, corrosion-resistant |
| Environmental Impact | Solvent inks, chemical waste, high VOCs | Zero consumables, clean process |
| Operating Cost | $0.01-0.05 per mark (ink, tips, chemicals) | $0.001 per mark (electricity only) |
| Material Compatibility | Limited substrate adhesion | Metals, plastics, ceramics, composites |
| Precision & Resolution | 0.2mm minimum line width | 0.02mm minimum line width |
| Integration Capability | Standalone stations only | Full PLC/ERP automation integration |

Caratteristiche e vantaggi principali

What makes the Klear Laser wholesale fiber laser marking machine superior is its integration of high-quality components designed for precision, durability, and versatility in industrial applications.

The heart of the system is its top-tier laser source from JPT or Raycus. Raycus offers higher power stability (±3%), while JPT provides superior beam quality (M²<1.2). Both brands ensure reliable performance over time with minimal maintenance.

The marking head features a precision optical system with a fixed telecentric lens that achieves a fine spot size (minimum 0.01mm) for exceptional detail. It also includes a dynamic focus lens system allowing automatic focal adjustment within a 150mm range, accommodating various workpiece heights without manual intervention.

The KLC-MARK-20W/50W/80W series includes an integrated 3L cooling chiller, maintaining precise temperature control (±0.5°C) to stabilize laser output. This self-contained system eliminates the need for external chillers, reducing installation complexity.

Our smart control software offers network compatibility with PLC integration, supporting automated production lines. The interface provides real-time monitoring of key components, including the laser source and marking head, ensuring consistent performance and enabling predictive maintenance.

Applicazioni industriali

Fiber laser marking machines are extensively used in the automotive industry for permanent part identification. Components such as engine blocks, transmission parts, and chassis elements require high-contrast, durable markings for traceability and compliance. The non-contact nature of fiber laser marking ensures precision without compromising the structural integrity of sensitive parts.

In aerospace applications, these machines mark critical components like turbine blades, landing gear, and avionics housings. The ability to create corrosion-resistant, high-resolution serial numbers and barcodes ensures compliance with strict regulatory standards. Materials like titanium and Inconel are commonly marked with fiber lasers due to their high reflectivity and thermal resistance.

Marine equipment manufacturers use fiber laser marking for tagging valves, pumps, and propulsion system components. These markings must withstand saltwater exposure, vibration, and extreme temperatures. Permanent laser engraving ensures long-term legibility, which is crucial for maintenance and safety compliance in offshore and naval environments.

Perché scegliere Klear Laser

Klear Laser provides 24/7 technical support for fiber laser marking systems, backed by certified engineers with industry-specific expertise. Our global support network ensures rapid resolution of production issues across automotive, aerospace, and electronics manufacturing. Critical issues receive response times under two hours, minimizing operational disruption.

All core components—including the laser source, galvanometer system, and control software—are covered under a two-year comprehensive warranty. Extended warranty options are available for high-utilization environments. Every claim is processed within 48 hours with clear documentation and transparent communication.

Genuine spare parts are stocked across regional warehouses worldwide, ensuring 95% availability for commonly replaced components. All parts undergo strict OEM testing to maintain performance standards. This minimizes downtime and guarantees seamless integration with existing laser marking systems.
