Laserbeschriftungsmaschine: Case Study

In the high-stakes environment of automotive component manufacturing, a Tier-1 supplier recently faced critical bottlenecks with their traceability protocols. Their production line relied on traditional dot peen systems to serialize aluminum transmission housings, but the mechanical stress was causing micro-fractures in thinner wall sections. The noise levels from the pneumatic impactors also exceeded new factory safety regulations, necessitating an immediate change in process.

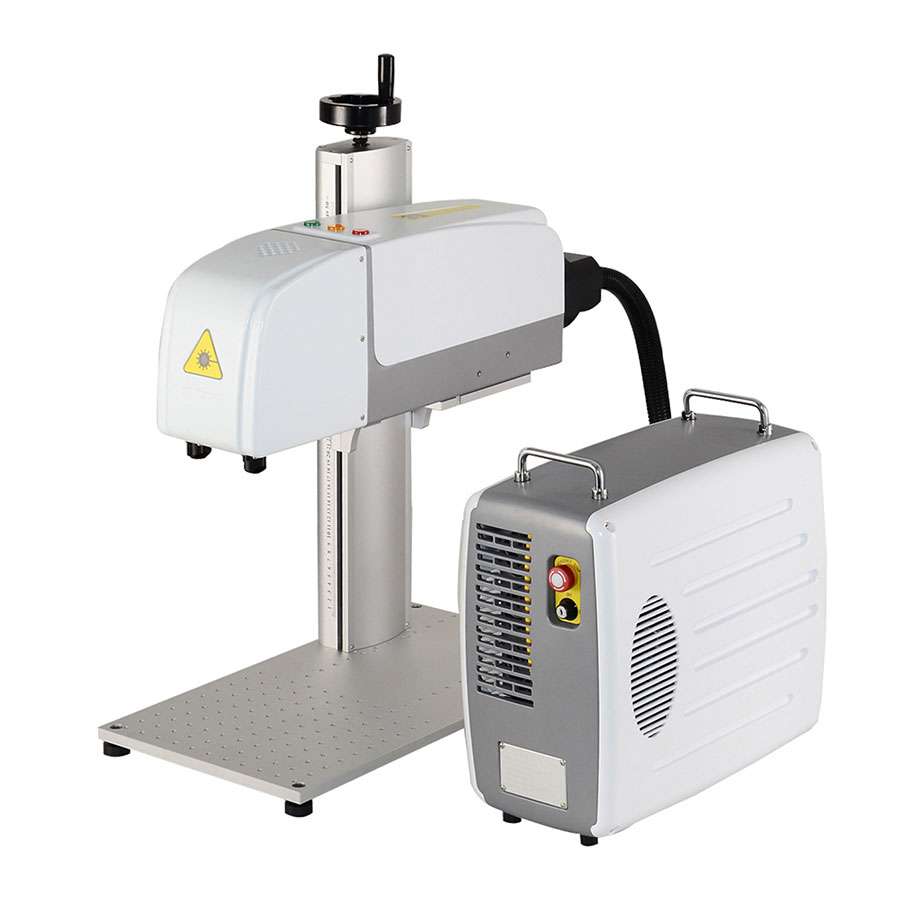

Klear Laser deployed a high-precision Fiber Laser Marking Machine, known technically as a laserbeschriftungsmaschine, to replace the mechanical units. We utilized a 30W JPT MOPA fiber laser source which allows for adjustable pulse durations to optimize interaction with the aluminum substrate. This non-contact method completely eliminated the mechanical stress on the components and removed the risk of deformation during the marking process.

The efficiency gains realized within the first quarter of operation were substantial. The cycle time for marking a complex Data Matrix code and serial number dropped from eight seconds to under two seconds. Because the laser beam requires no consumables like carbide pins or ink cartridges, the client eliminated the downtime previously required for tool changes and refill maintenance.

Furthermore, the optical clarity of the laser-marked codes significantly improved downstream automation. The high-contrast marks achieved a near-perfect read rate for the automated optical inspection cameras, whereas the previous dot peen marks frequently caused false rejects due to poor lighting reflection. This shift not only accelerated production but also aligned with our mission to provide clean, waste-free industrial solutions.

主な特徴と利点

Klear Laser does not manufacture dedicated laser marking machines (“Laserbeschriftungsmaschinen”). Our industrial focus is laser welding, cleaning, and UV printing solutions. However, our UV printing systems achieve high-precision permanent surface marking using advanced laser-grade components, replacing chemical etching and ink-based processes.

The Klear UV Pro Series integrates a JPT MOPA fiber laser source with precisely controlled pulse widths down to 4ns. This enables cold marking on sensitive substrates like anodized aluminum and medical polymers without thermal damage. The galvanometer head features <10µm spot accuracy and dynamic focus for consistent results on curved surfaces.

Compared to traditional marking methods, our system eliminates consumables and hazardous waste while exceeding ISO 13485 standards for medical device traceability. The integrated vision system ensures 100% read rates for Data Matrix codes critical in aerospace and automotive supply chains.

Here is a technical comparison of our UV printing system versus standard laser marking approaches:

産業用途

A laserbeschriftungsmaschine (laser marking machine) permanently marks components with serial numbers, barcodes, and certification data across critical industrial sectors. These systems utilize high-precision fiber laser sources to create indelible marks without consumables or contact, replacing traditional ink-based methods that degrade in harsh environments.

In the automotive industry, laserbeschriftungsmaschine systems mark engine blocks, transmission components, and VIN plates with 2D data matrix codes for lifetime traceability. The process withstands extreme thermal cycling and chemical exposure while maintaining mark contrast on aluminum castings and hardened steel surfaces. Manufacturers achieve cycle times under 3 seconds per component using 50W fiber lasers with 100mm focal lenses.

Aerospace applications demand absolute compliance with AS9100 and FAA traceability requirements. Laser marking creates high-contrast identification on titanium turbine blades, Inconel fasteners, and aluminum airframe sections without compromising material integrity. The non-contact process eliminates mechanical stress while producing marks readable after 30,000+ flight hours and repeated thermal treatments.

Marine environments require corrosion-resistant marking that survives salt spray, UV exposure, and bi-metallic corrosion. Laserbeschriftungsmaschine equipment marks stainless steel propeller shafts, bronze valve bodies, and aluminum hull components with deep annealed marks that resist galvanic degradation. Systems with IP66 ratings and 200mm working distances accommodate large, irregularly shaped marine castings.

Modern laserbeschriftungsmaschine platforms integrate JPT MOPA fiber sources offering 2-500ns pulse width tunability for optimized material interaction. This flexibility prevents micro-fracturing in aerospace alloys while achieving sufficient contrast on reflective marine surfaces. Closed-loop vision systems verify mark quality to AIM DPM standards, ensuring 100% readability in production environments.

クリアレーザーを選ぶ理由

Klear Laser delivers exceptional post-purchase value through comprehensive global support. Our 24/7 technical assistance includes remote diagnostics and troubleshooting, minimizing unplanned downtime. Field engineers are available for on-site service, complemented by operator training programs designed to maximize machine productivity and lifespan.

We stand behind our equipment with industry-leading warranty terms, ensuring long-term investment security. Coverage includes all critical components like laser sources and oscillators, safeguarding against manufacturing defects for the specified duration. Extended warranty options provide additional peace of mind beyond the standard period.

Warranty Comparison

Genuine spare parts availability is critical for sustained operation, and Klear Laser maintains extensive global inventories. Our efficient logistics network ensures rapid delivery of all replacement components. Proactive parts management programs help customers anticipate needs, preventing costly unexpected failures and maximizing overall equipment effectiveness.
