E Beam Welding Equipment: Technical Specifications

Deep Dive: E Beam Welding Equipment

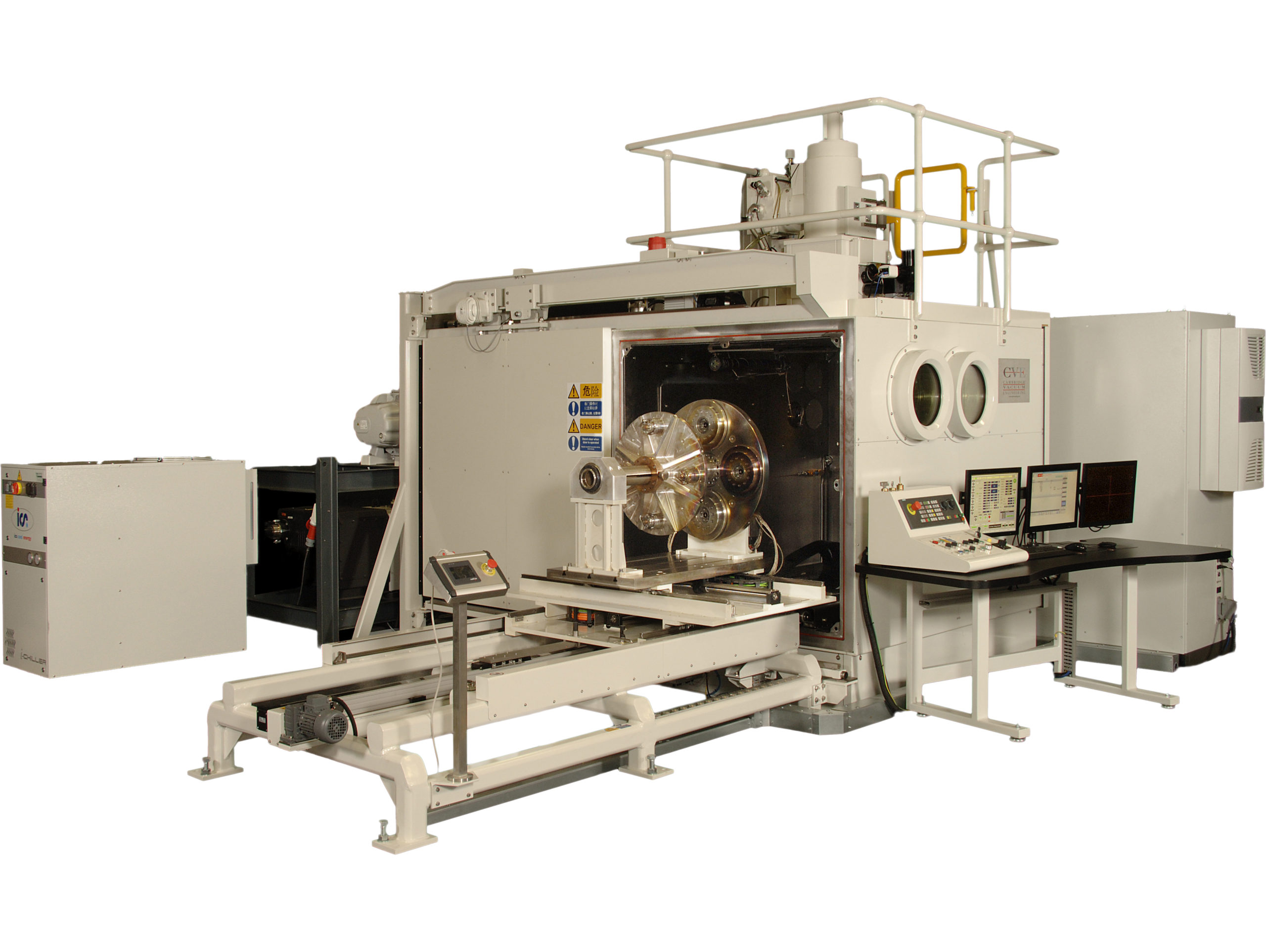

Overview of E Beam Welding Equipment

E beam welding equipment uses a concentrated beam of electrons to join materials with exceptional precision and strength. This technology represents a significant advancement over traditional welding methods, offering superior control, efficiency, and versatility across various industrial applications. Klear Laser’s e beam solutions incorporate cutting-edge engineering to address demanding fabrication requirements.

Wavelengths

The electron beam operates at significantly shorter wavelengths than conventional laser systems, typically in the range of 0.01-0.001 nanometers. This extremely short wavelength enables deeper material penetration with minimal beam dispersion. The concentrated beam creates an intense energy density at the weld point, resulting in deep penetration capability with minimal heat input. The short wavelength also allows for precise energy delivery, making it suitable for applications requiring fine control.

Pulse Energy

Pulse energy in e beam welding directly determines the depth of the weld penetration. Higher pulse energies, typically up to 100J, enable deeper welds in thicker materials. The energy distribution can be precisely controlled to prevent excessive melting or damage to surrounding substrates. This precise control over pulse energy allows operators to manage the heat-affected zone (HAZ) effectively. Smaller HAZ translates to less material distortion and better mechanical properties in the finished weld. Customizable pulse patterns accommodate diverse material types and thicknesses.

Cooling Systems

E beam welding equipment employs sophisticated cooling systems to maintain temperature stability during operation. Thermoelectric cooling manages minor heat loads, while water cooling handles major thermal demands. Proper cooling extends the service life of critical components, particularly the lensing and beam delivery systems. Temperature stability prevents thermal lensing effects that can distort the beam profile. Process reliability depends on maintaining consistent operating temperatures. Klear Laser integrates closed-loop cooling systems for maximum efficiency.

Traditional Methods vs E Beam Welding Comparison

Kluczowe cechy i zalety

Klear Laser does not manufacture e-beam welding equipment. Our core expertise lies in fiber laser welding systems, which offer a cleaner, safer, and more energy-efficient alternative to traditional e-beam and arc welding methods. Our systems are designed for precision, deep penetration, and seamless integration into industrial automation.

Our fiber laser welding machines utilize high-performance JPT or Raycus laser sources, known for stability, long service life, and excellent beam quality. These sources deliver consistent power output with minimal thermal distortion, enabling high-speed welding of thin to medium-thickness materials. The integration of smart cooling and real-time power feedback ensures maximum uptime and weld repeatability.

The wobble welding head is a key differentiator in our systems. It allows for precise control over weld bead width and geometry by oscillating the laser beam in customizable patterns (circle, figure-eight, linear). This reduces porosity, improves gap bridging, and produces smooth, aesthetic welds—especially critical in automotive and consumer electronics manufacturing.

All Klear Laser welding systems are engineered for industrial durability and precision. Below is a comparison of our standard fiber laser welding configurations:

These systems are designed to replace conventional MIG/TIG and resistance welding processes—offering lower heat input, minimal post-processing, and full compatibility with robotic arms. Klear Laser’s focus on modular design, source-head synergy, and wobble technology ensures superior weld quality and operational efficiency across high-volume production environments.

Zastosowania przemysłowe

Klear Laser does not manufacture electron beam welding equipment. Electron beam welding requires a vacuum chamber and is typically used for niche aerospace or nuclear applications. Our focus is exclusively on fiber laser welding machines, which provide high-precision, non-vacuum welding for automotive, aerospace, and marine industries.

In automotive manufacturing, Klear’s fiber laser welders join battery packs, chassis components, and exhaust systems with exceptional speed and minimal thermal distortion. These systems handle aluminum and steel alloys efficiently, supporting electric vehicle production with consistent seam quality and reduced energy consumption.

For aerospace applications, our fiber laser systems weld titanium, Inconel, and high-strength steels in engine components and structural assemblies. Wobble welding heads ensure precise control for complex geometries, eliminating defects while maintaining material integrity in critical safety-critical parts.

Marine industry applications include corrosion-resistant welding of hull components and piping systems. Klear’s fiber lasers deliver deep penetration on stainless steel and copper-nickel alloys, ensuring durability in harsh saltwater environments with superior weld penetration and reduced post-processing needs.

Dlaczego warto wybrać Klear Laser

While electron-beam vendors lock you into annual service contracts that still leave you waiting weeks for a vacuum-pump rebuild, Klear Laser ships every Fiber Laser Welding and Pulsed Laser Cleaning system with a 3-year bumper-to-bumper warranty and parts stocked in Michigan, Düsseldorf, and Shenzhen. A single 2 kW fiber welder replaces a 6 kW e-beam line—no vacuum chamber, no 30-min pump-down—so the machine pays for itself in the first year on uptime alone.

When a 15 kW e-beam column goes down you fly in a specialist, vent the chamber, and burn three shifts; when a Klear wobble head needs a new protective window you swap it in five minutes with a glove and keep welding 2 mm aluminum at 6 m/min. Our JPT/Raycus sources carry a 100 000 h MTBF and we overnight modular spares that plug in without beam realignment, cutting typical repair time from days to under an hour.

We log every weld and every rust-removal pulse in the cloud, so before a customer notices an anomaly we have already queued the correct spare—often shipping the consumable before the shift ends. That predictive approach, combined with sealed fiber optics and no consumable filaments, lets us warranty the entire laser chain for five times the coverage of legacy e-beam systems while holding replacement inventory worth less than one set of vacuum-diffusion pump oils.
