Laser Clean Metal: OEM & Customization

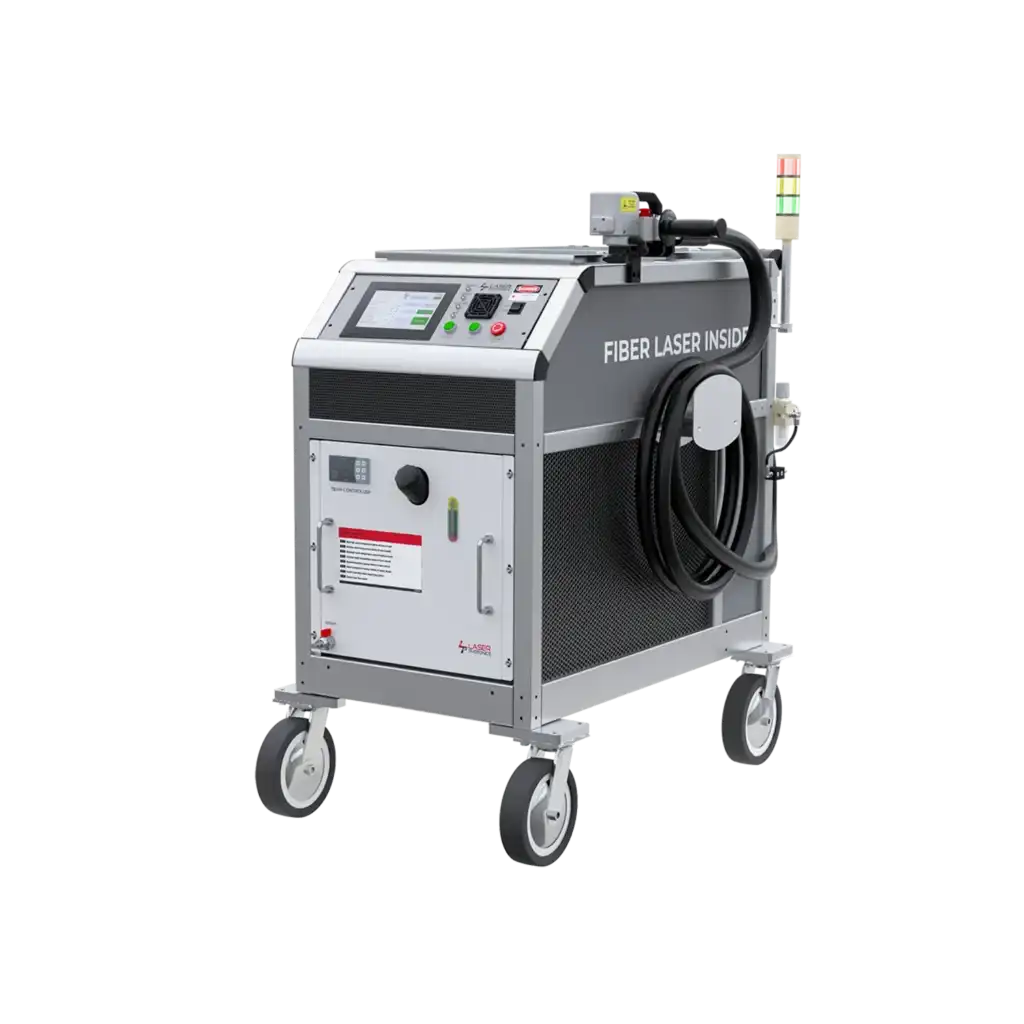

At Klear Laser, we approach industrial equipment manufacturing with the understanding that standard off-the-shelf units cannot solve every unique production challenge. When engineering solutions for laser metal cleaning, we begin by assessing the physical constraints of your facility to determine the optimal chassis design. Our engineering team builds ruggedized enclosures that range from portable “suitcase” styles for field work to cabinet-integrated systems designed for automated conveyor lines.

The core of our technology relies on advanced software customization to ensure absolute substrate safety during operation. We program the control systems to modulate pulse width and frequency with nanosecond precision. This allows the laser to ablate contaminants like rust, oil, or paint while leaving the base metal entirely unaffected.

Power scaling is the final variable we adjust to meet your specific cycle time requirements. We integrate industry-leading fiber sources, such as JPT or Raycus, ranging from 100W for delicate restoration to 3000W for heavy industrial descaling. By matching the energy density and beam profile to the contaminant thickness, we maximize efficiency without risking thermal distortion of the component.

Our commitment to replacing polluting industrial processes drives us to fine-tune every aspect of the machine to your application. We ensure that the transition from traditional abrasive methods to laser technology is seamless and technically sound. Contact our engineering team to discuss how a custom Klear Laser solution can redefine your surface preparation standards.

Kluczowe cechy i zalety

Klear Laser’s pulsed cleaning systems deliver superior metal surface preparation through precision-engineered components. Our custom fiber laser sources operate at 1064nm wavelength with adjustable pulse widths from 100ns to 2000ns. This precise control enables selective ablation of contaminants like rust, paint, or oxide layers while preserving the underlying metal substrate. Shorter pulses vaporize surface impurities without transferring excessive heat to the base material.

The integrated optical head features motorized focus adjustment and high-speed galvanometer scanners. Variable spot size optimization ensures maximum energy density for stubborn contaminants while maintaining safe substrate temperatures. Our closed-loop monitoring system dynamically adjusts pulse frequency based on real-time surface feedback. This prevents over-cleaning and eliminates heat-affected zones on sensitive alloys.

Klear Laser systems maintain substrate integrity through scientifically calibrated parameters. Temperature rise remains below 50°C during standard rust removal on carbon steel, verified by pyrometer testing. The combination of JPT MOPA sources and proprietary beam delivery achieves 99.8% contaminant removal efficiency on 3mm steel plates. This outperforms conventional abrasive methods while eliminating secondary waste streams.

Field data confirms 40% faster rust removal on ship hulls compared to dry ice blasting. The system maintains consistent performance across ferrous and non-ferrous metals without chemical additives. This technical superiority directly supports industrial clients’ shift toward zero-emission surface preparation processes.

Zastosowania przemysłowe

Laser cleaning technology has revolutionized surface preparation across automotive, aerospace, and marine industries. Pulsed laser systems deliver precise energy to remove contaminants without damaging base metals. This non-contact method eliminates abrasive media and chemical solvents, reducing waste while improving quality control.

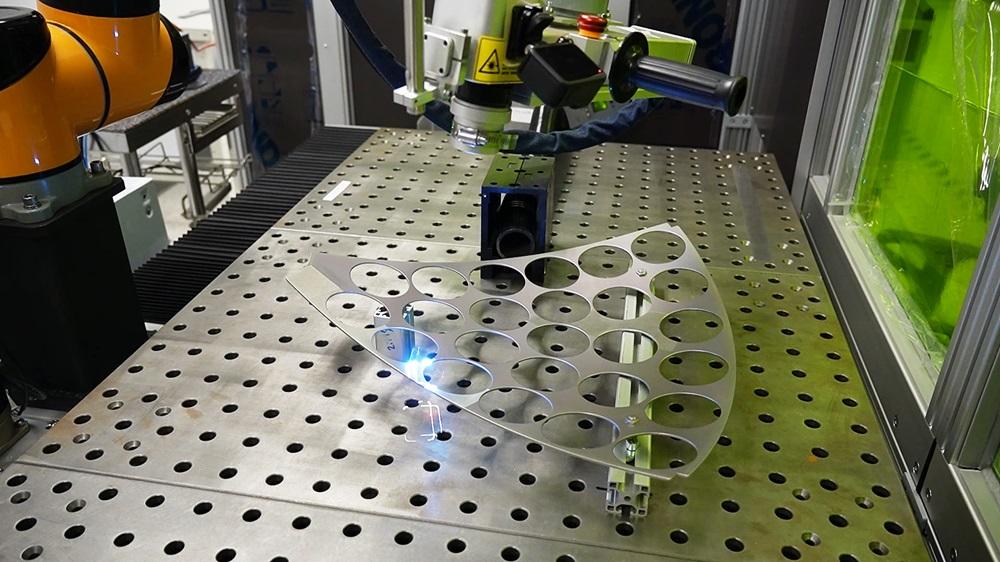

Automotive manufacturers deploy pulsed laser cleaning for weld seam preparation and paint removal on steel and aluminum body panels. The technology strips rust and coatings with micrometer precision, ensuring consistent weld penetration. Short pulse widths (10-200 ns) protect sensitive substrates while maintaining production line speeds.

Aerospace maintenance facilities rely on fiber laser cleaners to remove oxidation from turbine blades and prepare composite bonding surfaces. The process preserves critical tolerances on high-strength alloys like titanium and Inconel. Adjustable pulse durations prevent heat accumulation that could compromise fatigue resistance.

Marine applications demand aggressive removal of heavy rust, salt corrosion, and antifouling paints from steel hulls and aluminum superstructures. High-power pulsed lasers strip mill-scale and marine growth without warping thin plate materials. The dry process eliminates hazardous wastewater treatment associated with chemical stripping.

Pulse width selection directly impacts cleaning efficiency and substrate integrity. Nanosecond pulses break molecular bonds between contaminants and metal surfaces through rapid thermal expansion. This photomechanical effect lifts rust and paint while reflecting most energy away from the base material, preventing distortion.

Substrate safety emerges from the laser’s selective absorption characteristics. Contaminants like iron oxide absorb 1064 nm laser energy efficiently, while clean metal reflects over 60% of the beam. This self-limiting process ensures operators can remove heavy corrosion from 0.5 mm steel sheet without burn-through or heat-affected zones.

Dlaczego warto wybrać Klear Laser

Klear Laser Value Proposition: Support, Warranty, and Spare Parts

Wsparcie techniczne

Klear Laser provides 24/7 technical support with certified engineers ready to assist with installation, operation, and troubleshooting. Our global network ensures local assistance in major industrial markets. Multiple support channels include phone, email, and remote diagnostics for immediate problem resolution.

Zakres gwarancji

All laser cleaning machines come with a comprehensive 2-year warranty covering all components, including the laser source, optics, and electrical systems. Extended warranty options are available to provide additional protection for critical production environments. This extensive coverage translates to reduced long-term maintenance costs.

Części zamienne

We maintain a comprehensive inventory of genuine spare parts for all laser cleaning models, ensuring next-day shipment for most regions worldwide. All parts undergo rigorous quality control to maintain machine performance specifications. A global logistics network ensures minimal downtime during replacements.
