When selecting laser derusting machine, always prioritize the laser source brand (JPT/Raycus) over raw wattage for long-term reliability.
Laser Derusting Machine: Shipping & Compliance
Crating & Shipping
Klear Laser derusting machines undergo industrial crating using reinforced plywood and steel framing. Vibration-dampening materials protect laser optics and precision components. Customized cushioning secures sensitive parts like the beam delivery system. Shipments comply with ASTM D7338 standards for impact resistance and ISTA 3A for international logistics. Climate-controlled containers prevent humidity damage during ocean freight.
HS Code Classification
Laser cleaning machines typically fall under HS Code 8479.89 (Machinery of heading 8471, not specified elsewhere). Final classification depends on specific features like power output and automation level. Customs declarations must include technical specifications to prevent misclassification. Consult a licensed customs broker for precise country-specific duties.
Laser Safety Compliance
Klear Laser derusting systems comply with IEC 60825-1 Class IV laser safety standards. Integrated safety features include:
Interlocked safety enclosures (CE, OSHA compliant)
Auto-shutdown sensors for unauthorized access
Protective eyewear matched to 1064nm wavelength
Local exhaust ventilation for particulate removal
Operators require formal training per ANSI Z136.1. Documentation includes risk assessments and maintenance logs.
Traditional Methods vs. Laser Derusting Machine
| Caraterística | Jateamento abrasivo | Chemical Pickling | Klear Laser Derusting |
|---|---|---|---|
| Rust Removal | High impact, base metal abrasion | Chemical dissolution, hazardous fumes | Precision pulsed ablation (≤10µs pulse width) |
| Impacto do substrato | Surface erosion, profile alteration | Hydrogen embrittlement risk | Minimal thermal effect (<0.1% HAZ) |
| Impacto ambiental | Airborne particulates, disposal issues | Toxic sludge, water contamination | Near-zero emissions, solid residue recycling |
| Operational Costs | High media consumption, labor-intensive | Chemical replenishment, wastewater treatment | <0.5kWh/m² energy use, 1 operator |
| Precisão | Uniform but aggressive | Chemical-specific reaction | Adjustable fluence (1-10J/cm²) for rust/thin coatings |
Klear Laser systems deliver µm-level thickness control without compromising substrate integrity. Pulse parameters adapt to ferrous/non-ferrous metals, ensuring optimal derusting across automotive, aerospace, and heritage restoration applications.
Principais caraterísticas e vantagens
Klear Laser’s fiber laser derusting machines utilize high-peak-power pulsed fiber lasers from trusted sources like Raycus and JPT. These laser sources deliver precise pulse widths—typically 100–200 ns—optimized for rapid thermal expansion on rust layers without damaging the underlying substrate. The short pulse duration ensures efficient ablation while minimizing heat input to the base metal.

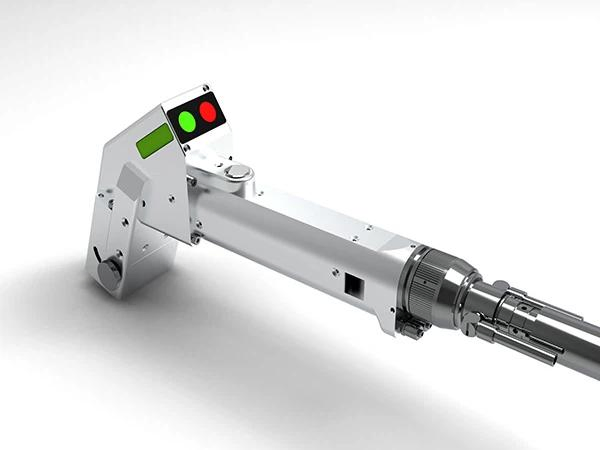

The scanning heads integrate high-speed galvanometers with F-theta lenses, enabling uniform spot distribution and consistent coverage over large surface areas. Klear Laser’s proprietary motion control algorithms synchronize the beam scanning with robotic or CNC motion, achieving repeatable rust removal with minimal operator intervention.
Substrate safety is prioritized through adjustable fluence and frequency settings, allowing operators to tailor parameters for carbon steel, cast iron, or even delicate alloys. The system effectively removes rust, mill scale, and oxides while preserving original surface integrity, a critical advantage in maintenance and restoration applications.
| Especificação | Value / Detail |
|---|---|
| Fonte de laser | Laser de fibra pulsado Raycus ou JPT |
| Maximum Peak Power | Up to 6 kW |
| Largura do impulso | 100 – 200 ns |
| Frequência de impulsos | 20 – 200 kHz (adjustable) |
| Qualidade do feixe (M²) | <1.5 |
| Cabeça de leitura | High-speed Galvo with F-theta Lens |
| Spot Size (at focus) | 0.03 – 0.06 mm (adjustable) |
| Cleaning Width (typical) | 10 – 60 mm per pass |
| Substrate Temperature Rise | <50°C (controlled settings) |
| Supported Materials | Carbon steel, cast iron, stainless steel |
Aplicações industriais
Laser derusting machines are widely used in the automotive industry for cleaning rust from chassis, frames, and structural components. The precise control of pulse width ensures surface oxidation is removed without damaging underlying metal or affecting weldability. This method replaces toxic chemical treatments and abrasive blasting, reducing waste and downtime in vehicle manufacturing and restoration.
In aerospace, laser derusting is critical for maintaining high-value components like turbine blades and landing gear. Short pulse widths (5–50ns) prevent thermal stress on titanium and aluminum alloys while eliminating corrosion layers. This non-contact process meets stringent aerospace quality standards and preserves critical tolerances for flight safety.
Marine applications include removing saltwater-induced rust from ship hulls, propellers, and offshore platforms. The process safely targets steel and aluminum substrates without altering material thickness or coatings. This extends component lifespan and reduces dry-dock time compared to sandblasting or chemical treatments.
| Material | Faixa de largura de pulso | Segurança do substrato | Aplicações comuns |
|---|---|---|---|
| Aço carbono | 10–300ns | No thermal distortion; preserves structural integrity | Automotive frames, marine ship hulls |
| Aço inoxidável | 15–200ns | Removes surface oxides without altering corrosion resistance | Aerospace components, medical tools |
| Ferro fundido | 20–250ns | Prevents micro-cracking; maintains casting smoothness | Blocos de motor, maquinaria industrial |
| Alumínio | 5–50ns | Non-abrasive; retains surface finish and strength | Aircraft skins, marine propellers |
| Cobre | 5–30ns | Selective cleaning; no discoloration or pitting | Electrical contacts, marine fittings |
| Titânio | 10–150ns | Zero thermal distortion; critical for aerospace specs | Jet engine parts, offshore structures |
Porquê escolher a Klear Laser
Klear Laser treats after-sales support as a production tool, not an expense. A U.S.-based tech team answers the phone within three rings, diagnoses over IoT in minutes, and ships critical spares the same day. That keeps your laser derusting machine earning its keep instead of collecting dust on a service bench.
Every pulsed laser cleaning machine leaves our factory with a full 2-year bumper-to-bumper warranty and a 48-hour on-site guarantee for North-American customers. We publish MTBF data on each component, so you can schedule maintenance during planned line stops instead of reacting to surprises. And because the laser source, scanner, and HMI are modular, a 15-minute swap restores full rust-removal power without special tools.
| Elemento de cobertura | Standard Term | Response Target | Typical Part in Stock |
|---|---|---|---|
| Full-machine warranty | 24 months unlimited hrs | 48 h field or depot | JPT 200 W laser |
| Fonte de laser | 36 months / 30 000 h | advance replacement 24 h | Raycus 100 W module |
| Galvo scanner | 24 meses | 24 h ship from TX | 2D-30 head |
| F-theta lens | 12 meses | same day | 300 mm F-theta |
| Consumables pack | 90 dias | 24 horas | Protective windows |
We keep a rotating inventory of $2 M in genuine spare parts at our Dallas hub, so you’re never forced to gamble with third-party optics that can ghost, mis-align, or scar the substrate. Even ten years after purchase, Klear Laser guarantees part availability and firmware updates that extend pulse-width control down to 8 ns for delicate aluminum rust removal. The result is a total cost of ownership that undercuts manual grit-blasting by 60 % while eliminating EPA disposal fees—and the support network is already on your floor, not an ocean away.
💰 ROI Calculator: Laser Derusting Machine
