Cnc Laserschneiden: Technical Specifications

CNC laserschneiden (laser cutting) leverages precise wavelengths to optimize material interaction. Fiber lasers typically operate at 1070–1080 nm, a wavelength highly absorbed by metals like steel, aluminum, and copper. This ensures efficient energy transfer, enabling clean cuts with minimal heat-affected zones. Shorter wavelengths, such as those from UV lasers, are better suited for non-metals but lack the power for thick metal cutting.

Pulse energy plays a critical role in high-precision CNC laser cutting. High pulse energy allows for deep penetration and faster processing speeds, especially in pulsed fiber laser systems. By modulating pulse duration and peak power, operators can cut reflective or heat-sensitive materials without warping or dross formation. Microsecond to nanosecond pulse widths offer control over thermal input, preserving material integrity.

Effective cooling is essential for sustained CNC laser performance. High-duty cycle operations generate significant heat, which can degrade beam quality and damage optical components. Most industrial systems use closed-loop chiller units to maintain a stable temperature of ±1°C. This ensures consistent laser output and prolongs the life of the resonator and scanning optics.

The table below compares traditional cutting methods with modern CNC laserschneiden in industrial applications.

CNC laserschneiden outperforms legacy systems in accuracy, speed, and operational cleanliness. By integrating advanced cooling and precise pulse energy control, these systems deliver repeatable, high-quality cuts across a wide range of industrial applications. Klear Laser’s fiber laser solutions are engineered to maximize uptime and minimize energy consumption, supporting sustainable manufacturing.

Ключевые особенности и преимущества

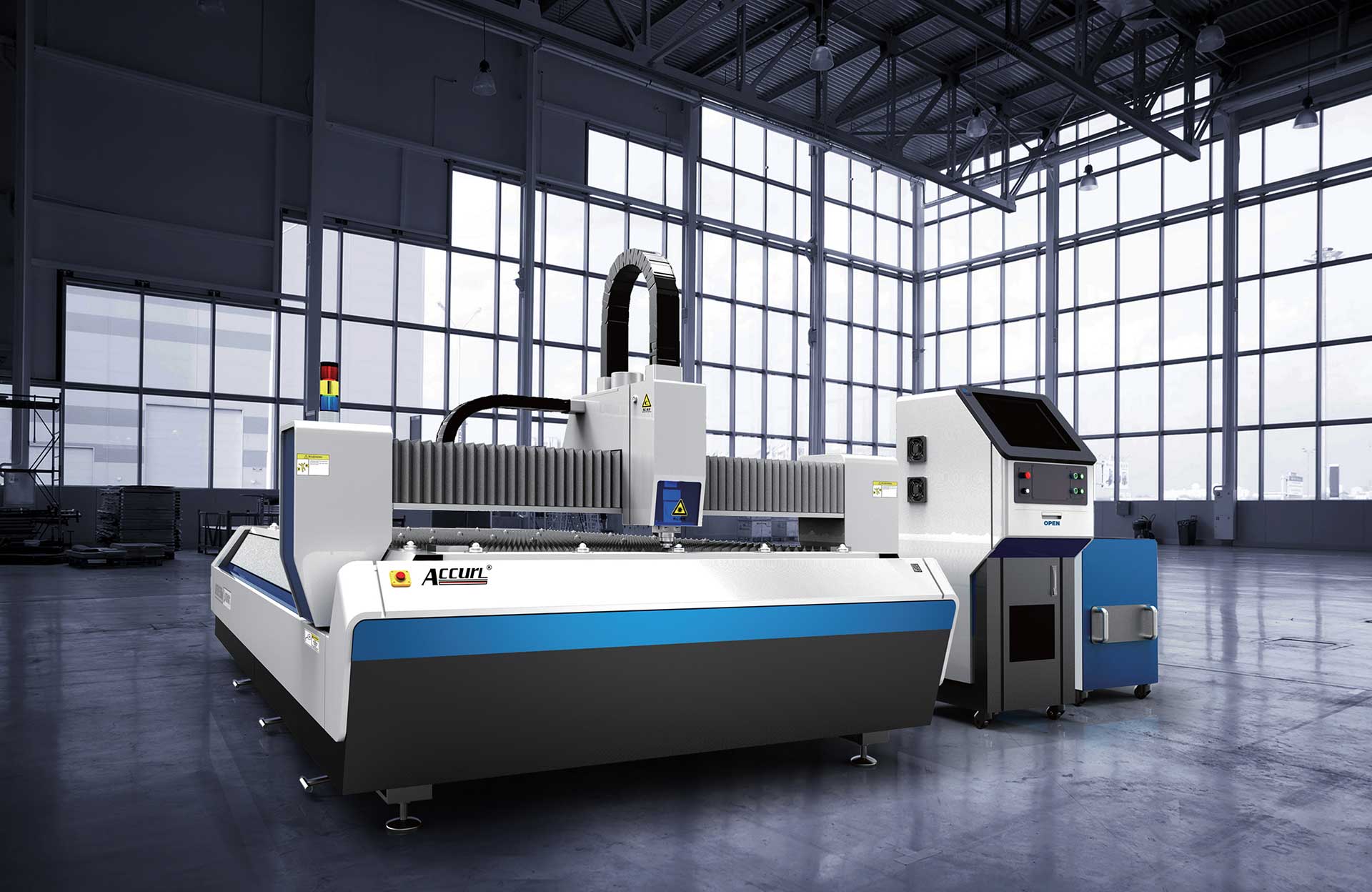

Klear Laser CNC laser cutting systems leverage high-performance Raycus fiber laser sources. These sources deliver exceptional beam quality with M² values below 1.2, enabling precise cuts on thin to thick materials. They ensure stable power output and minimal thermal distortion during high-speed operations.

Our cutting heads feature fully automatic focal adjustment and capacitive height sensing. This system dynamically maintains optimal focus across irregular surfaces, preventing nozzle collisions and ensuring consistent cut quality. Advanced nozzle designs optimize assist gas flow for cleaner edges and reduced dross.

Промышленное применение

CNC-Laserschneiden has become the default first operation in Tier-1 and OEM plants because it turns 25 mm hot-formed steel or 6 mm titanium into finished contours in a single pass, eliminating hard tooling and deburring. In automotive body-in-white lines the same 6 kW fiber resonator that cuts roof bows today can be re-parameterised tomorrow for a new model year, giving production planners the flexibility they need for just-in-sequence builds. The aerospace industry exploits the same machines to slice Inconel jet-segments and carbon-fibre wing skins on the same 5-axis gantry, holding ±0.05 mm so downstream robotic welders need virtually no gap filling.

Marine fabricators use CNC lasers to profile DH-36 ship-plate up to 20 mm before forming, creating intricate hatch corners and window matrices that once required plasma and weeks of grinding. The heat-affected zone stays below 0.3 mm, so the plate retains its low-temperature toughness for polar class vessels. Meanwhile, yacht builders cut decorative stainless grids and aluminium honeycomb decks with nitrogen assist, leaving a dross-free edge that can go straight to TIG welding without secondary cleaning.

Applicable materials and typical process window for high-precision CNC-Laserschneiden:

Почему стоит выбрать Klear Laser

Klear Laser recognizes that industrial machinery requires more than just high-performance specifications to remain viable in a competitive manufacturing environment. Our value proposition centers on a support infrastructure designed to minimize downtime and maintain the integrity of your production line. We prioritize rapid response times for all inquiries regarding our fiber laser welding and pulsed laser cleaning systems.

Our technical support team consists of engineers with deep expertise in JPT and Raycus laser sources. These specialists are equipped to troubleshoot complex issues related to beam delivery, pulse width modulation, and wobble head mechanics. We ensure that you have direct access to knowledgeable personnel who understand the intricacies of laser-material interaction.

We offer a comprehensive warranty that reflects our confidence in the durability of our equipment. This coverage protects critical components such as the laser source and the optical path against manufacturing defects. Our goal is to de-risk your transition from traditional chemical or abrasive processes to our clean laser technologies.

To guarantee continuous operation, we maintain a substantial inventory of essential spare parts and consumables. This includes protective windows, welding nozzles, and focus lenses specifically calibrated for our machines. Rapid dispatch of these components ensures that your facility maintains consistent weld penetration and effective rust removal without extended interruptions.
